Product Description

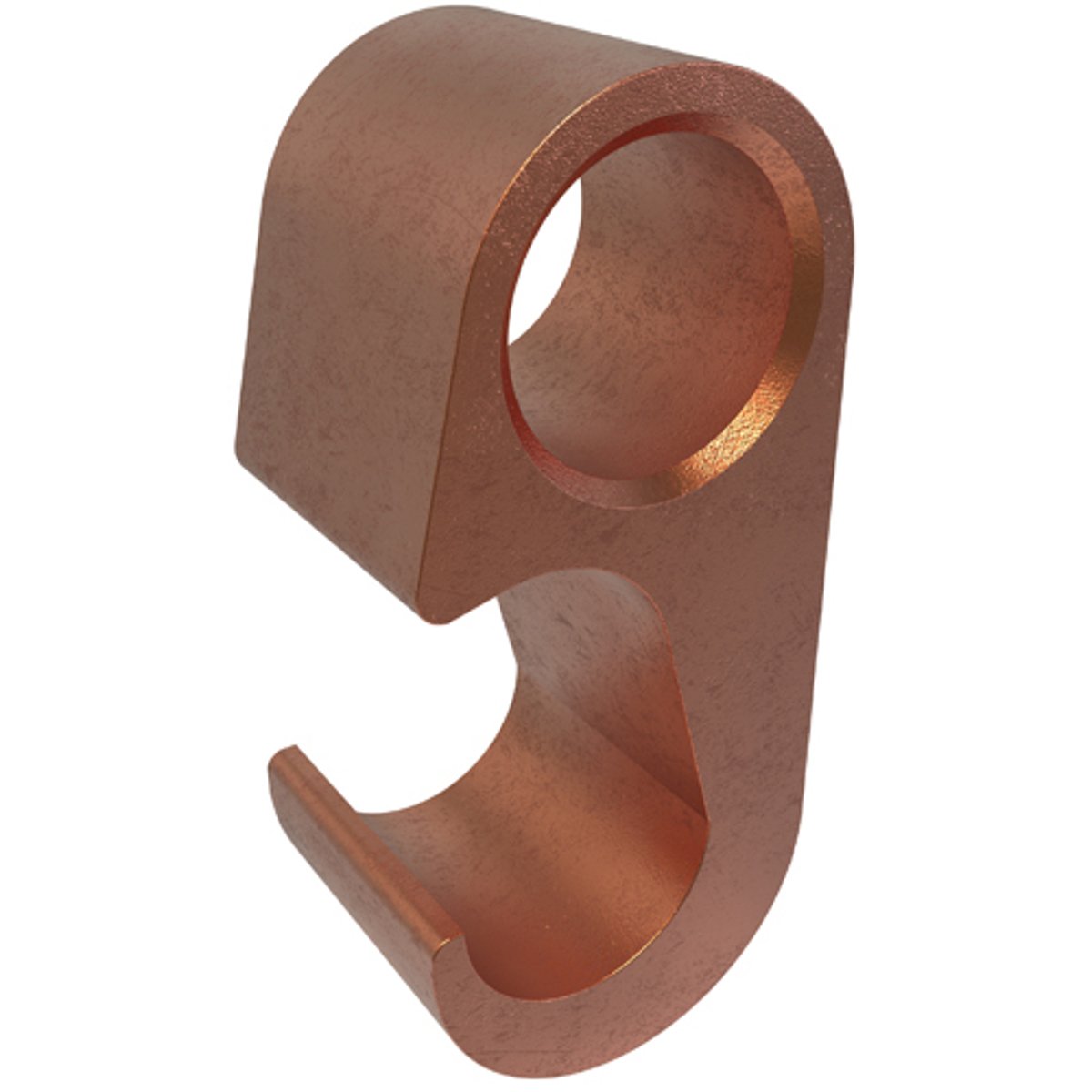

The ILSCO GGC-4 is a grounding grid tap connector designed for conductors ranging from one-aught (1/0) AWG to two hundred fifty (250) kcmil. It connects well to grounding rods sized from one-half (1/2) inch to five-eighths (5/8) inch. The connector is made from high-strength copper alloy, ensuring effective conductivity and resistance to corrosion.
- Suitable for various conductor sizes and rod diameters
- Meets UL and CSA standards for reliable performance
- Versatile installation for both tap connections and lap splices
Product Highlights
This connector offers reliable grounding solutions for electrical systems, making it essential for both residential and commercial applications.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: GGC-4
-
Conductor Size: 1/0 AWG to 250 kcmil
-
Rod Size: 1/2 to 5/8 in
-
Shape: Figure 6
-
Material: Copper
-
Dimensions: 2.1 in H x 0.75 in W
-
Country of Origin: CA
-
Standards/Approvals: UL 667P, CSA file no. LR-5465, RoHS compliant
-
Package Weight: 0.251 L
