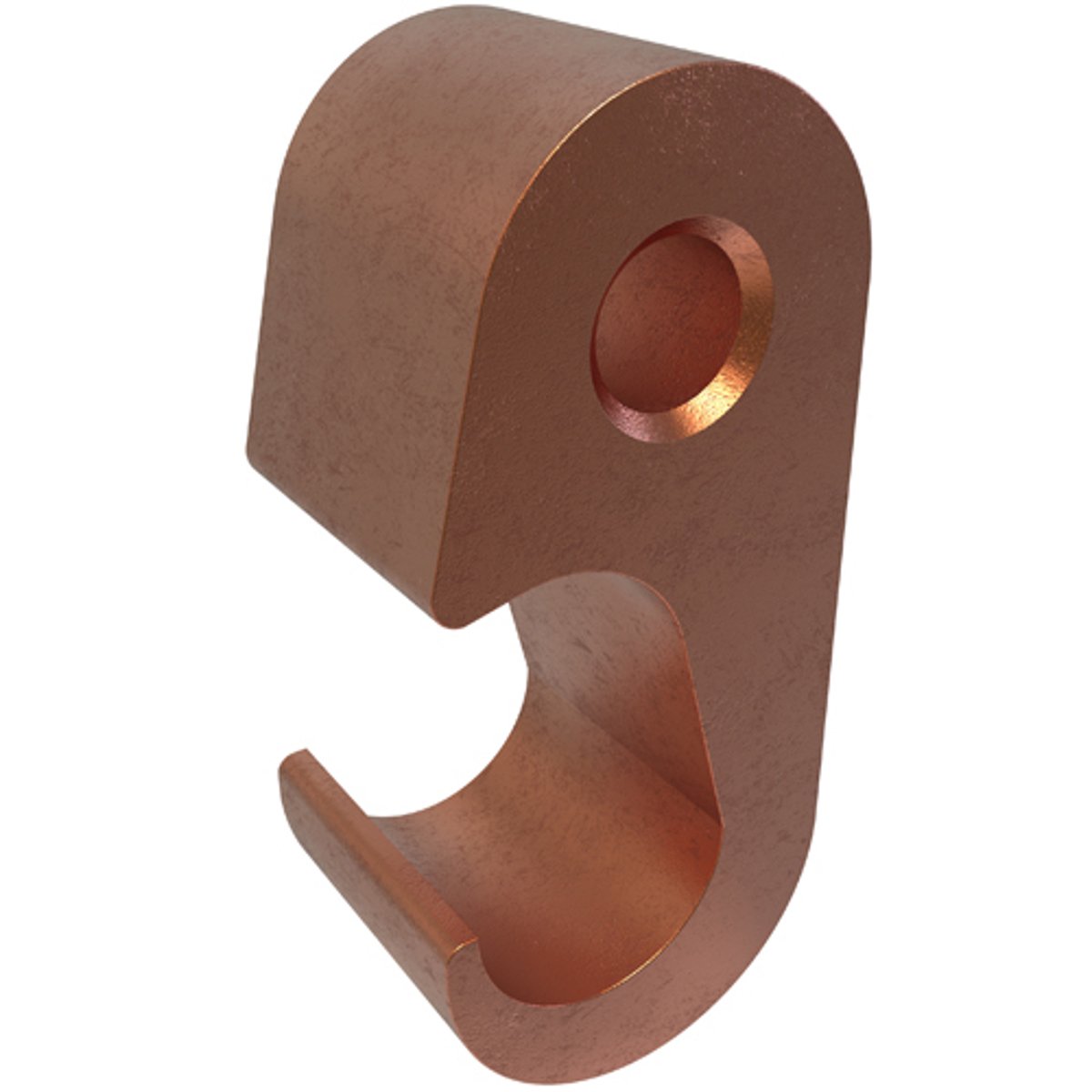

ILSCO GGC-2 Permaground Copper Grounding Grid 250-1/0 Tap 2-4 Ground Rod

Product Description

The ILSCO GGC-2 Permaground Copper Grounding Grid is designed for electrical grounding applications. It connects conductors ranging from one-aught American Wire Gauge to two hundred fifty thousand circular mil. The tap range is suitable for two to four AWG and works with ground rods measuring up to five-eighths of an inch. This product is essential for ensuring reliable grounding in various systems.

• Can connect copper conductors from 250 kcmil to 1/0 AWG.
• Compatible with ground rods and rebar sizes ranging from half to five-eighths inches and number three to number four, respectively.
• UL and CSA listed for safety and compliance.

Product Highlights

Reliable copper grounding grid for enhancing electrical system safety.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: GGC-2
• Conductor Size: 1/0 AWG to 250 kcmil
• Rod Size: 1/2 to 5/8 inches
• Dimensions: 2.1 inches height x 0.75 inches width
• Weight: 0.312 lb
• Country of Origin: Mexico
• Material: Copper
• Mfg Standards/Approvals: UL 667P File No E34440, CSA File No LR-5465, RoHS Compliant
