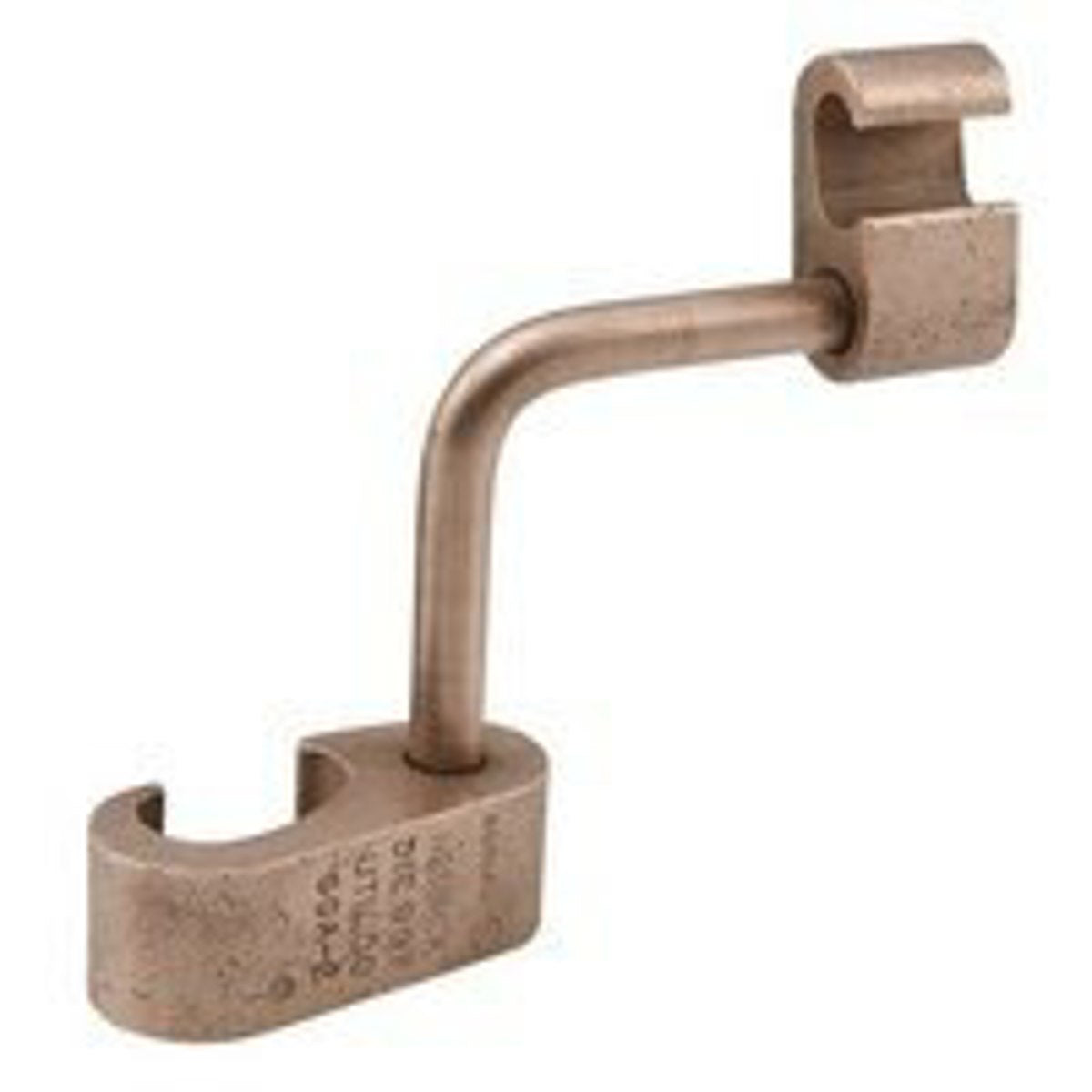

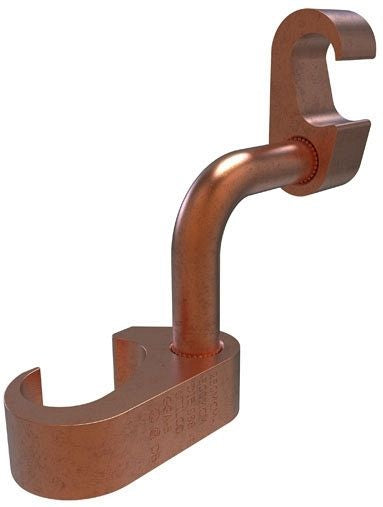

ILSCO GGA-5 Compression Grounding Grid Connector - 500 KCMIL (Side A), 250 KCMIL (Side B)

Product Description

The ILSCO GGA-5 is a compression grounding grid connector designed for connecting conductors efficiently. This product supports main cable sizes of five hundred KCMIL on one side and two hundred fifty KCMIL on the other. It is suitable for direct burial applications, ensuring reliable electrical connections in various environments.

• Manufactured from high-strength copper alloy for maximum conductivity.
• Clearly marked with wire size for easy identification.
• Range taking design to reduce inventory needs.

Product Highlights

The GGA-5 is designed for ease of use in the field. The prefilled oxide inhibiting compound prevents the formation of oxides, enhancing long-term reliability. This connector can be adjusted before installation, accommodating for misaligned cross grids and making installation straightforward.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: GGA-5
• UPC: 783669260083
• Approval: UL 467, UL 667P, CSA
• Body Material: High Strength Copper Alloy
• Conductor Material: Copper
• Maximum Run Conductor Size: 500 KCMIL (Side A), 250 KCMIL (Side B)
• Minimum Run Conductor Size: 250 KCMIL (Side A), 2 AWG Stranded (Side B)
• Die Index: 998/997
