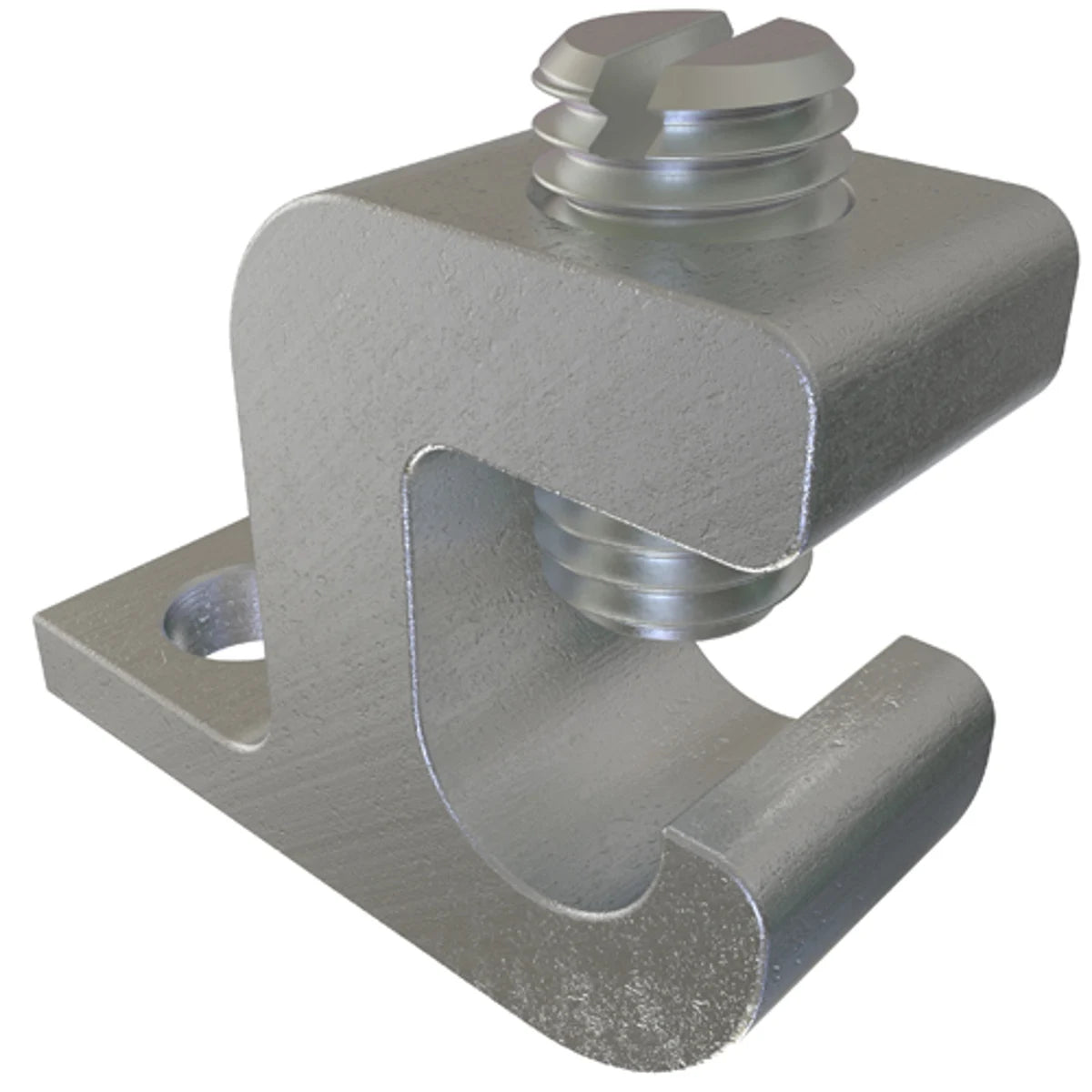

ILSCO GBL-4 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 4-14, Tin Plated, UL

Product Description

The ILSCO GBL-4 is a lay-in ground lug made for aluminum or copper conductors with a size range from fourteen to four American Wire Gauge (AWG). It features a dual rating for use with various conductor types and is suitable for grounding and bonding applications. Its construction allows for low contact resistance, enhancing electrical performance. This lug is approved by UL for reliable applications.

• Low contact resistance for improved conductivity
• Rated for multiple conductor types: aluminum and copper
• UL listed for safety in grounding and bonding applications

Product Highlights

The ILSCO GBL-4 ensures easy installation and versatility in applications.

Product Information

Standard Information

• Catalog Number: GBL-4
• Manufacturer: ECM Industries

Technical Specifications

• Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
• Conductor Size: 14 to 4 AWG
• Stud Size: #10
• Maximum Temperature Rating: 90°C
• Approval: UL 467, UL 468A/B
• Dimensions: 1.09 inches L x 0.79 inches W x 0.385 inches H
• UPC: 783669960051
