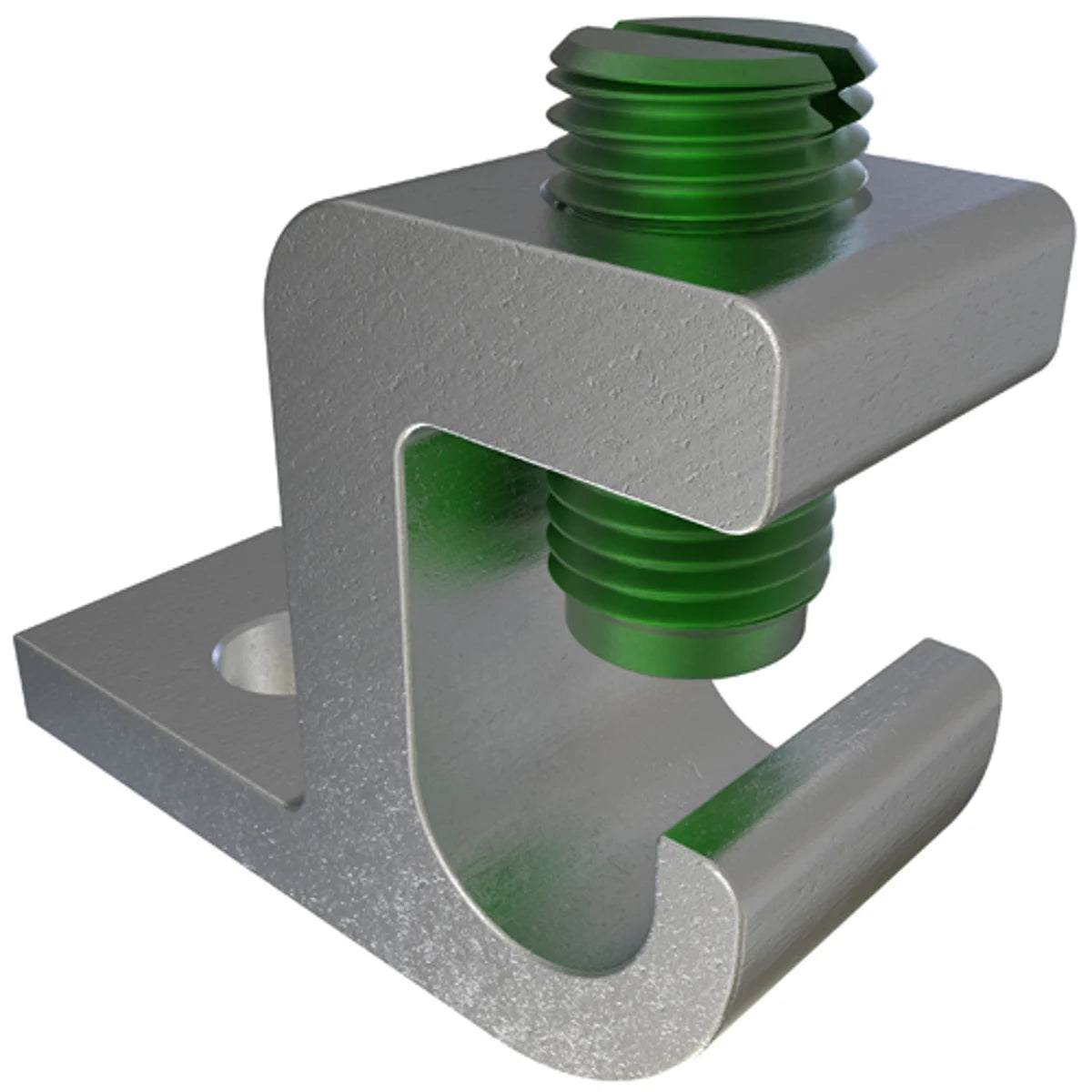

ILSCO GBL-1/0 Aluminum Lay-in Ground Lug, Dual Rated, Conductor Range 1/0-14, Tin Plated

Product Description

The ILSCO GBL-1/0 is an aluminum lay-in ground lug suitable for both copper and aluminum conductors. This dual-rated lug accepts conductor sizes ranging from fourteen to one aught. Designed for easy installation, it features a lay-in design that ensures secure connectivity.

• Dual-rated for copper and aluminum conductors
• Constructed from high-strength 6061-T6 aluminum alloy
• Electro-tin plated for low contact resistance

Product Highlights

The ILSCO GBL-1/0 ground lug is ideal for grounding and bonding applications, ensuring reliable performance and compliance with industry standards.

Product Information

Standard Information

• Catalog Number: GBL-1/0
• Manufacturer: ECM Industries

Technical Specifications

• Material: Electro-tin plated high strength 6061-T6 aluminum
• Conductor Size: 14 to 1/0 AWG
• Stud Size: 1/4 inch
• Maximum Conductor Size: 1/0 AWG
• Minimum Conductor Size: 14 AWG
• Number Of Pad Holes: 1
• Pad Size: 27/32 inch L x 5/8 inch W
• Type: Lay-In
