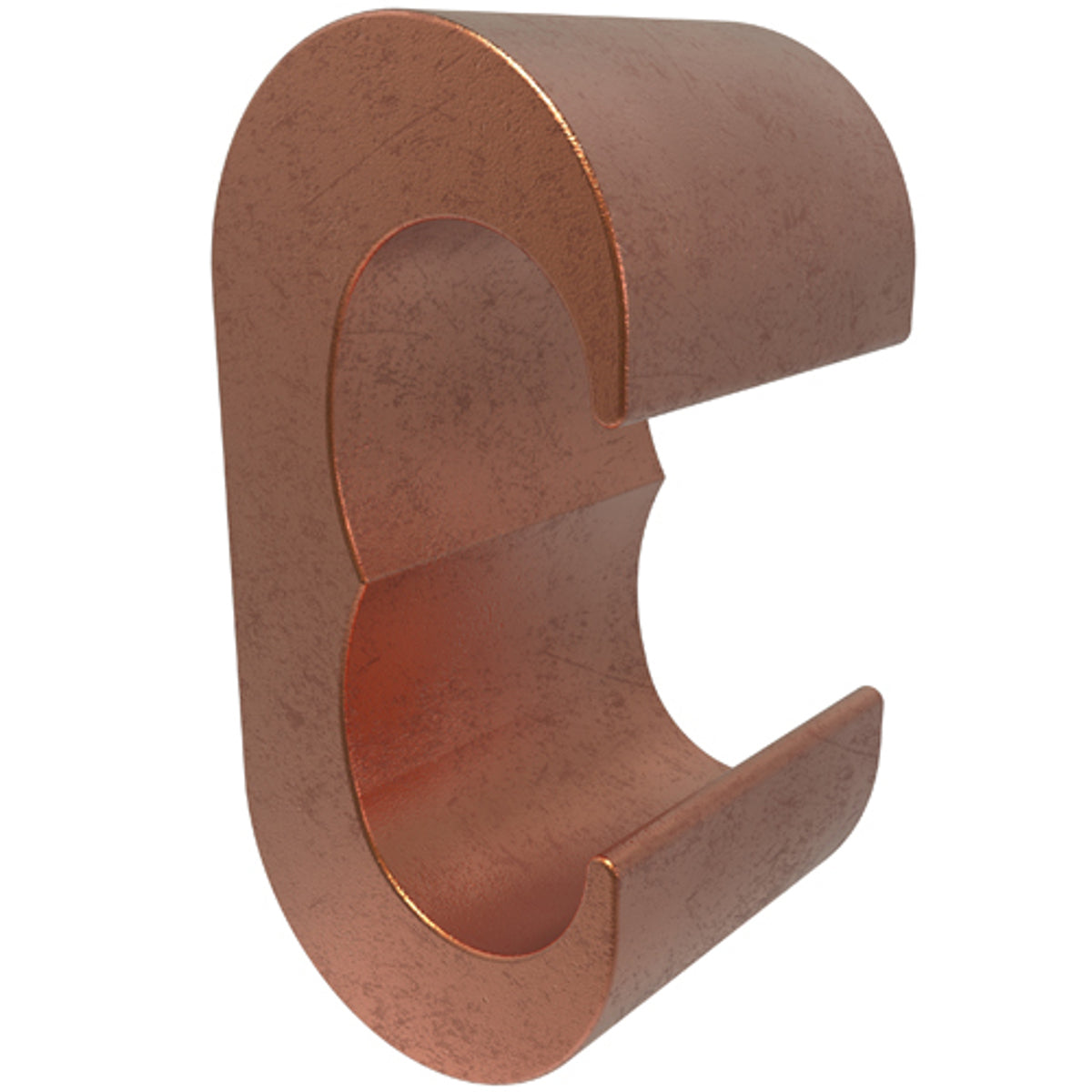

ILSCO ELT-2 Permaground Copper Grounding E Crimp, Main Conductor Range 2/0-1, Main Rebar Size #3, Tap Range 2/0-1, Tap Rebar Size #3, UL, CSA

Product Description

The ILSCO ELT-2 is a copper grounding crimp designed for use in various electrical applications. This connector accommodates main conductor sizes from two-aught to one and tap sizes from two-aught to one, providing a reliable connection suitable for multiple uses.

• Manufactured from copper alloy for maximum conductivity.
• Suitable for grounding and bonding, UL listed and CSA certified.
• Ideal for ground grid applications with range-taking features to reduce inventory.

Product Highlights

This connector ensures strong conductivity while being easy to identify thanks to clearly marked wire sizes.

Product Information

Standard Information

• Catalog Number: ELT-2
• Manufacturer: ECM Industries
• Brand: ILSCO
• Country of Origin: India
• UPC: 783669257328

Technical Specifications

• Maximum Run Conductor Size: 2/0 AWG Stranded
• Maximum Tap Conductor Size: 2/0 AWG Stranded
• Minimum Run Conductor Size: 1 AWG Stranded
• Minimum Tap Conductor Size: 1 AWG Stranded
• Approval: UL 467, UL 667P, CSA
• Body Material: Copper Alloy
• Conductor Material: Copper
• Die Index: O
• Shape: E
