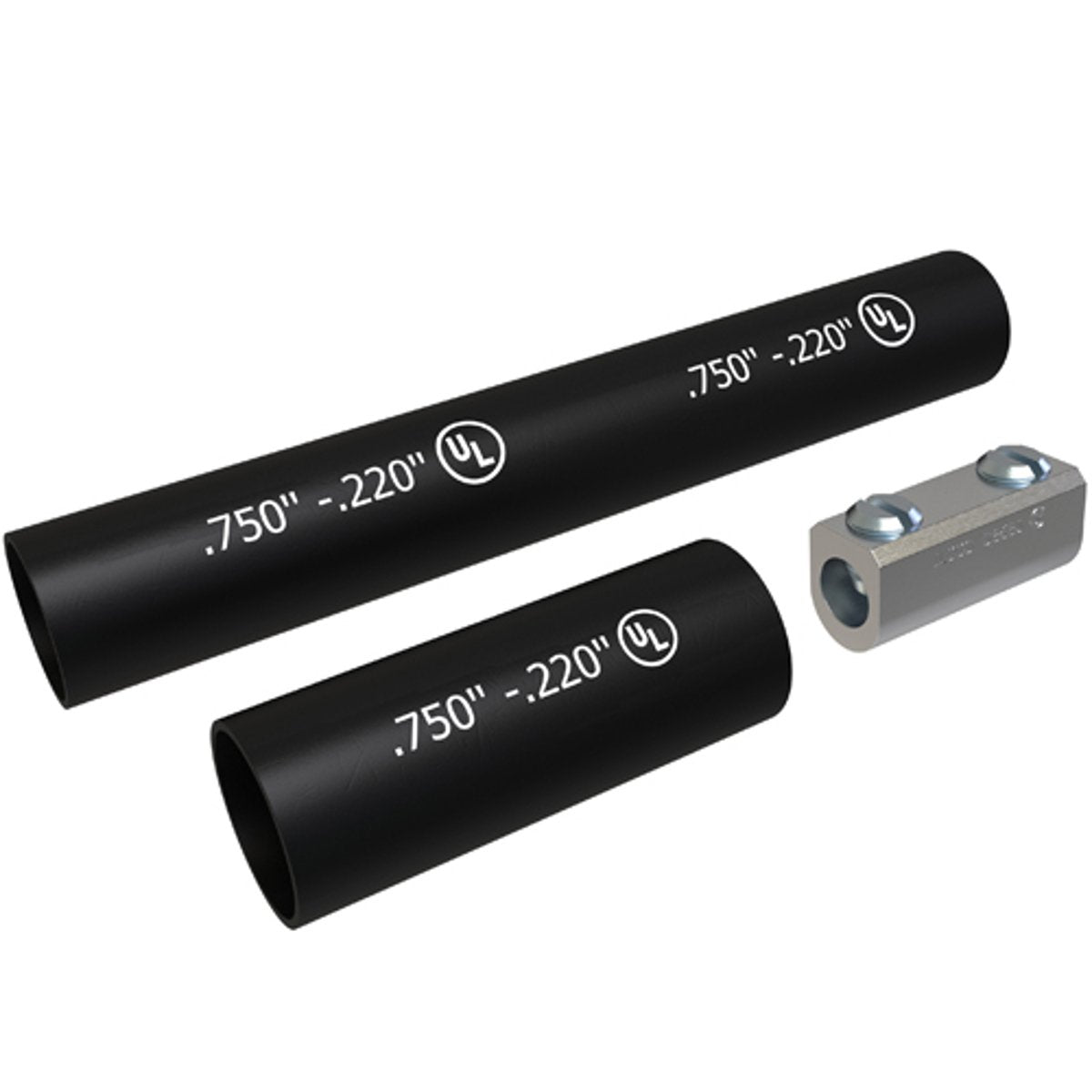

ILSCO DBK-2 Direct Burial Splice Kit, Dual Rated, Conductor Range 2-8, Includes (1) SPA-2 Splice and (2) Pieces of Heat Shrink, UL, CSA

Product Description

The ILSCO DBK-2 is a direct burial splice kit designed for dual-rated conductors ranging from two to eight AWG. This kit includes one SPA-2 splice connector and two pieces of heat shrink tubing. It is essential for making reliable electrical connections in outdoor applications.

• Connectors made from high strength aluminum alloy
• Heavy wall heat shrink tubing ensures watertight seals
• Designed to withstand abrasions from rocky soil conditions

Product Highlights

This splice kit provides a secure connection and is suitable for underground installations.

Product Information

Standard Information

• Catalog Number: DBK-2
• Manufacturer: ECM Industries

Technical Specifications

• Conductor Material: Copper/Aluminum
• Temperature Rating: 90 Deg C
• Approval: UL, CSA
• Contents: (1) Connector, (1) 5 Inch L Heat Shrink Tube, (1) 2 Inch L Heat Shrink Tube, (2) 5/16 Inch-24 TPI x 0.41 Inch L Screw
• Maximum Wire Combination Size: 2 AWG
• Minimum Wire Combination Size: 8 AWG
• Voltage Rating: 600 VAC
