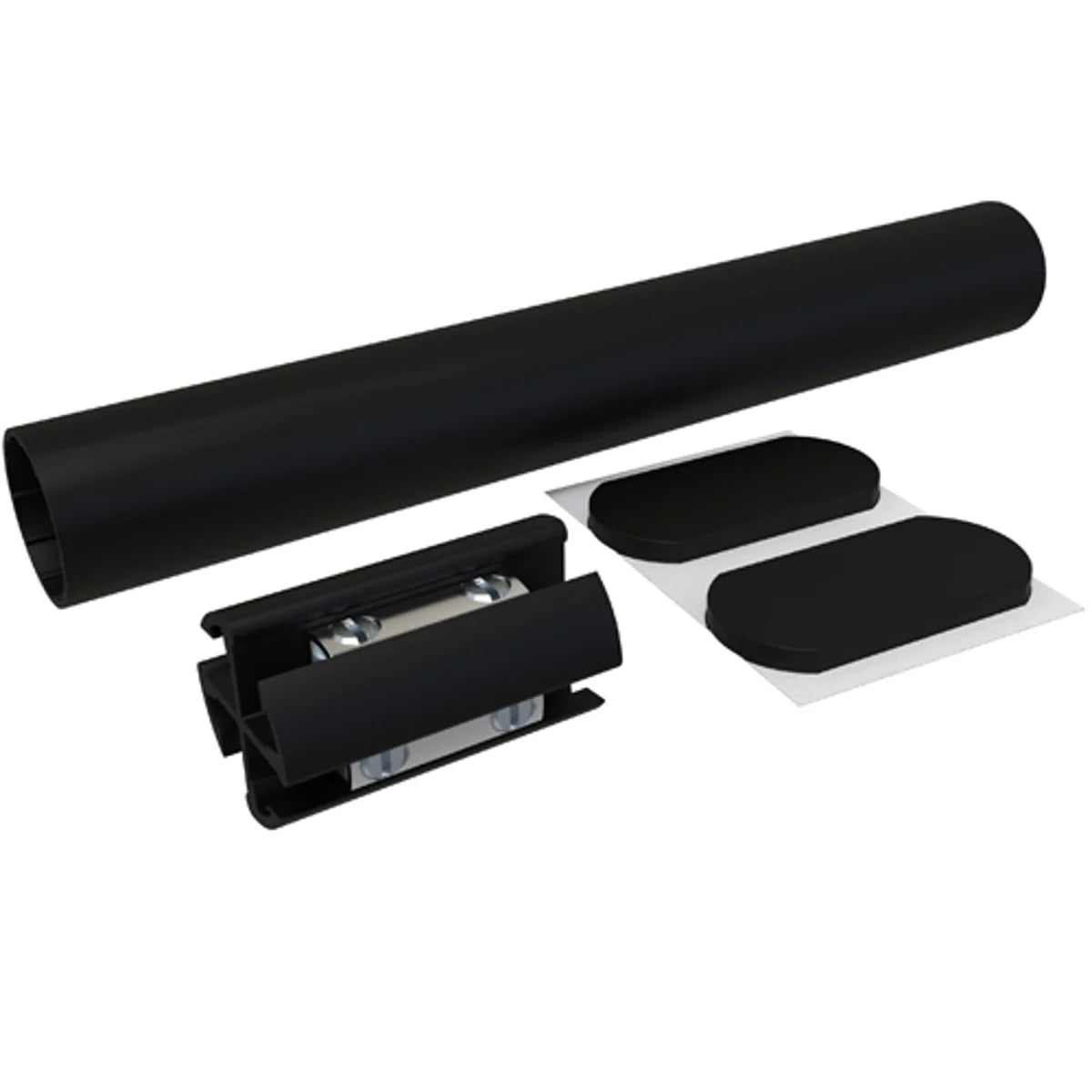

ILSCO DBK-1 Direct Burial Splice Kit, Dual Rated, UF Cable Range 8/3 - 14/2 with Ground, UL, CSA

Product Description

The ILSCO DBK-1 is a direct burial splice kit designed for dual rated UF cable range from eight three to fourteen two with ground. This kit is compliant with UL and CSA standards, ensuring reliability and safety for underground installations.

• Includes connectors made from high strength aluminum alloy for improved durability.
• Features heavy wall heat shrink tubing with a sealant for watertight splices.
• Designed to withstand abrasions, making it suitable for direct burial in rocky soil.

Product Highlights

This splice kit is perfect for applications requiring waterproof connections, ideal for underground use where exposure to moisture is a concern.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: DBK-1
• Conductor Material: Copper/Aluminum
• Temperature Rating: 90 Deg C
• Approvals: UL, CSA
• Minimum Wire Combination Size: (2) 14 AWG
• Maximum Wire Combination Size: (3) 8 AWG
• Contents: (1) Collar/Sleeve Assembly, (2) Tape, (1) 8 Inch L Heat Shrink Tube, (1) Paper Bag
• Standard Package: 10
