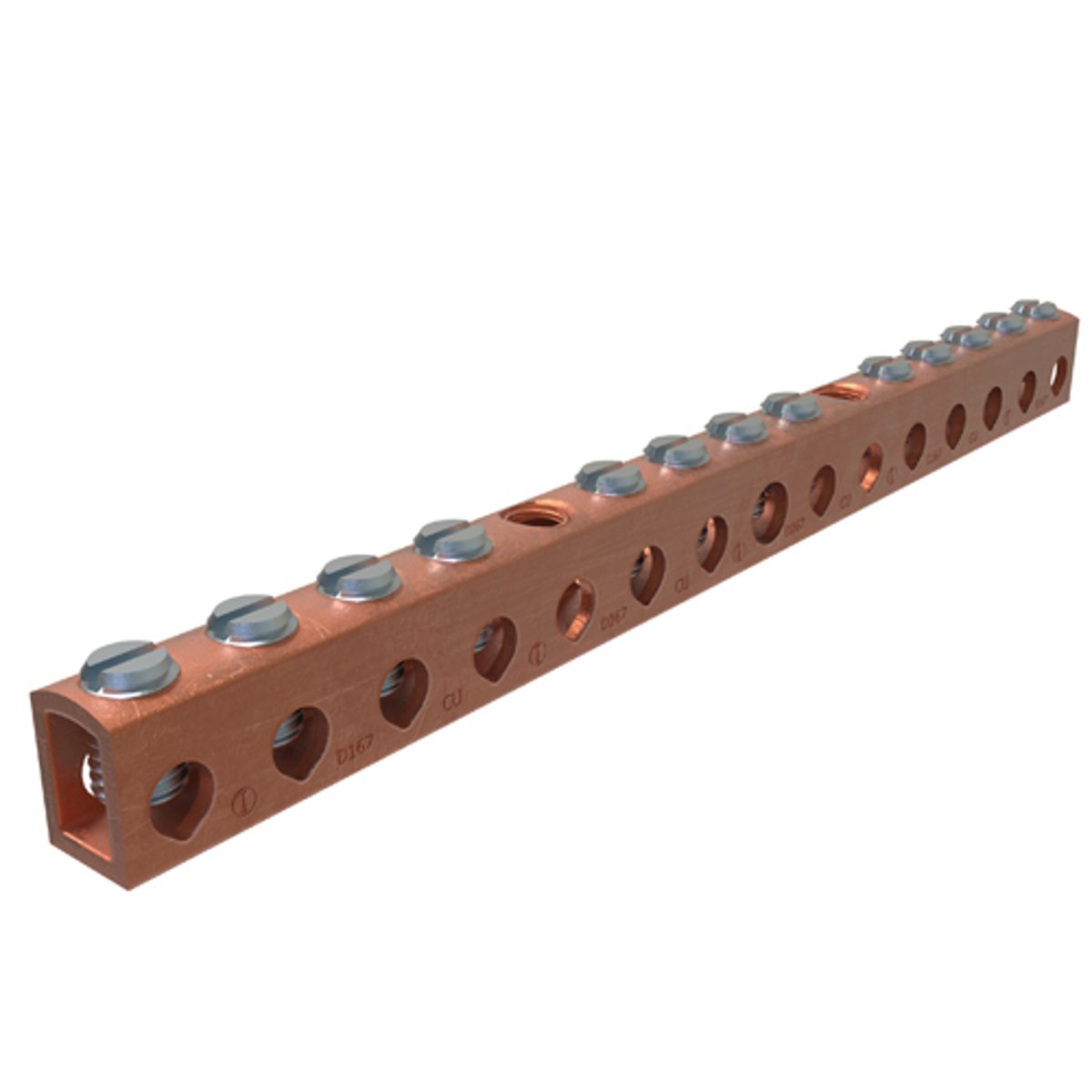

ILSCO D167-12 Copper Neutral Bar, Conductor Range 4-14 Main, 6-14 Tap, 13 Ports

Product Description

The ILSCO D167-12 is a copper neutral bar designed for connecting electrical conductors. This model supports a conductor range of four to fourteen AWG for the main and six to fourteen AWG for taps. With thirteen ports available, it provides flexibility in installation.

• Constructed from high-strength copper tubing.
• Compatible with a wide range of conductor sizes.
• UL approved for robust performance and safety.

Product Highlights

This neutral bar is ideal for grounding and bonding applications, ensuring reliable connections in electrical systems.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: D167-12
• Country of Origin: Mexico
• Material: Copper
• Voltage Rating: 2000 VAC
• Bar Height: 3/4 inches
• Bar Length: 5-15/16 inches
• Bar Width: 11/32 inches
• Cable Main: 14 to 4 AWG
• Cable Tap: 14 to 6 AWG
• Mounting Hole Quantity: 2
• Tap Quantity: 12
• Mfg Standards/Approvals: UL 486A/B, UL File E6207, CSA Certified, RU Listed, RoHS Compliant
