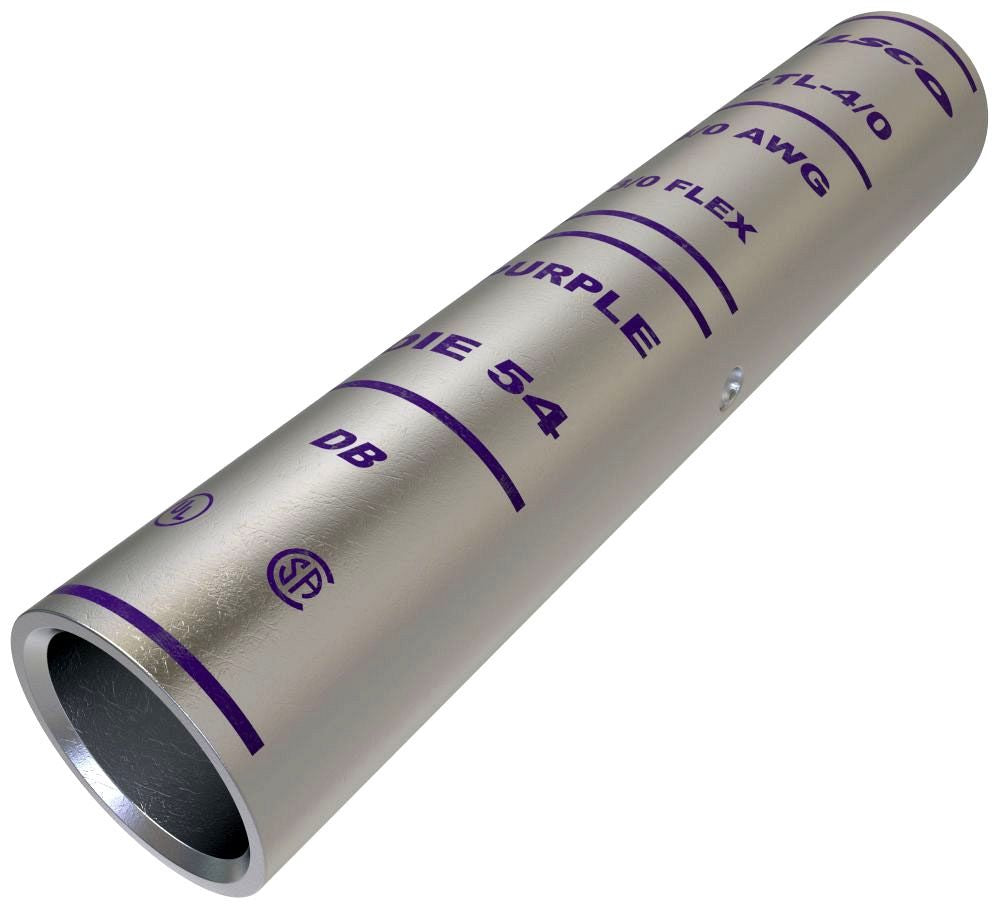

ILSCO CTL-4/0 Surecrimp Copper Compression Sleeve, Long Barrel, Size 4/0

Product Description

The ILSCO CTL-4/0 is a copper compression sleeve designed for wire connections. This product accommodates conductor sizes of 4/0 AWG, making it ideal for heavy-duty applications. The long barrel design facilitates easy cable insertion.

• Copper construction ensures high conductivity.
• Suitable for high voltage applications up to 35 kV.
• UL and CSA approved.

Product Highlights

This compression sleeve provides maximum conductivity and excellent crimping characteristics while maintaining low contact resistance. It is designed to reduce inventory needs and offers versatility for different applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CTL-4/0
• Conductor Size: 4/0 AWG
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Barrel Type: Long with Chamfered End
• Inner Diameter: 0.55 inches
• Outer Diameter: 0.687 inches
• Approval: UL 453G, UL 486A/B, CSA
• Color Code: Purple
• Country of Origin: Mexico
