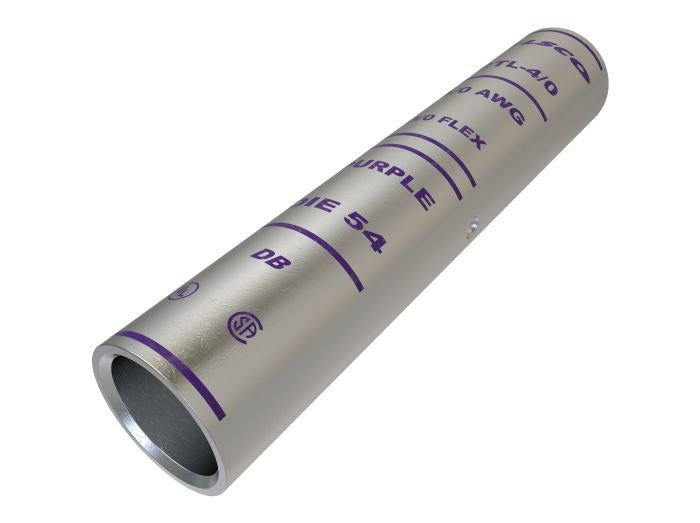

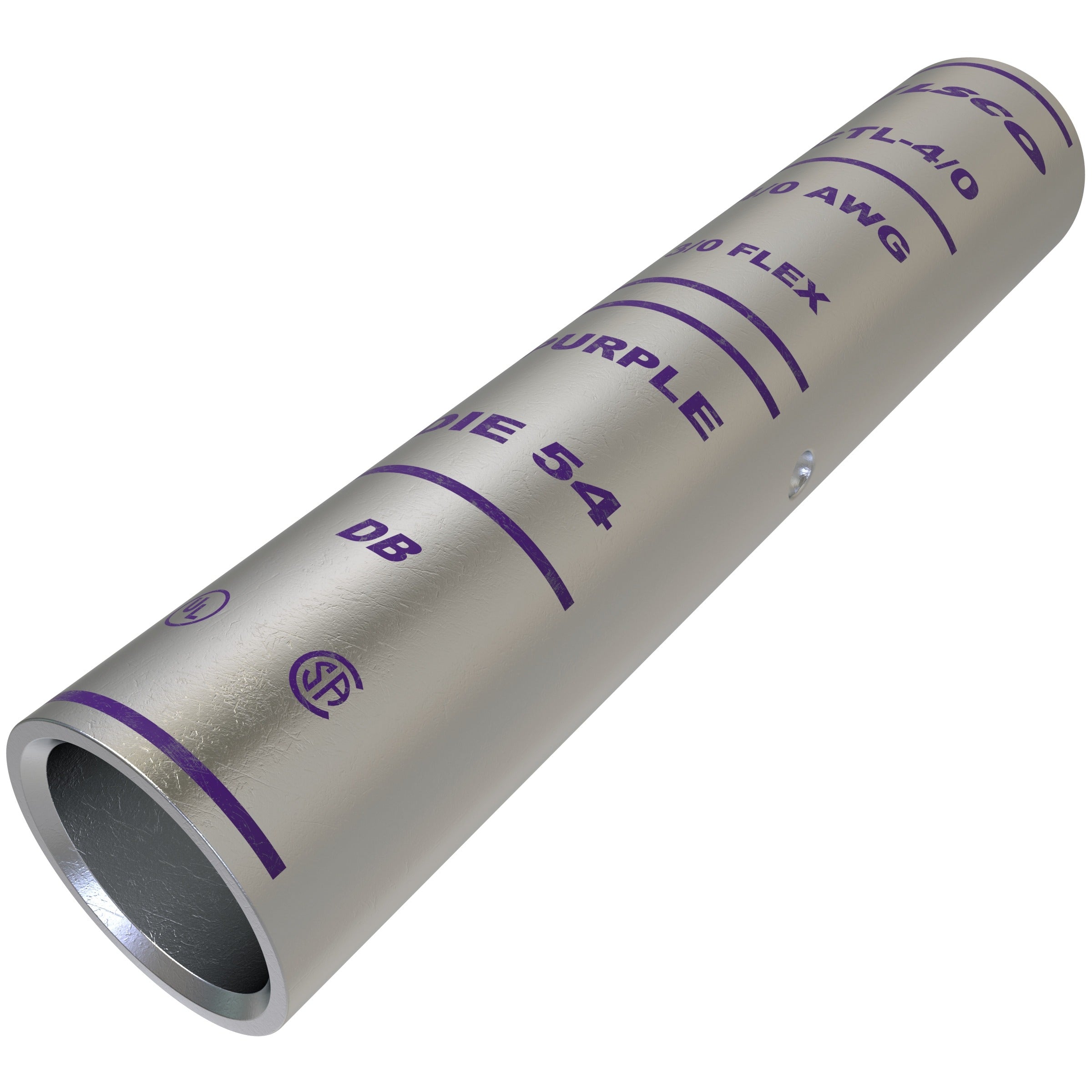

Ilsco CTL-4/0 SureCrimp Copper Compression Sleeve 600 Volt (4/0 AWG, Pack 10) CTL-4/0

Product Description

The Ilsco CTL-4/0 is a SureCrimp copper compression sleeve for compression splicing of copper conductors. The CTL-4/0 accepts primary 4/0 stranded conductors and supports a conductor range of 1–4/0 AWG, featuring a long barrel, tin-plated copper body, 3.375 in length, 0.546 in inside diameter and 0.687 in outside diameter. It is rated 600 V and 90 C and is UL and CSA listed.

• Designed for 1–4/0 AWG conductors (primary 4/0 stranded) with long-barrel construction for full conductor insertion
• Tin-plated copper body, length 3.375 in, inside diameter 0.546 in, outside diameter 0.687 in
• Electrical ratings: 600 V, 90 C; standards: UL 486A/B, UL 467, CSA C22.2 No. 65-03 (UL File E6207)

Product Highlights

Long-barrel tin-plated copper compression sleeve for 1–4/0 AWG (primary 4/0), 600 V / 90 C, UL and CSA listed

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CTL-4/0
• Country of Origin: Mexico
