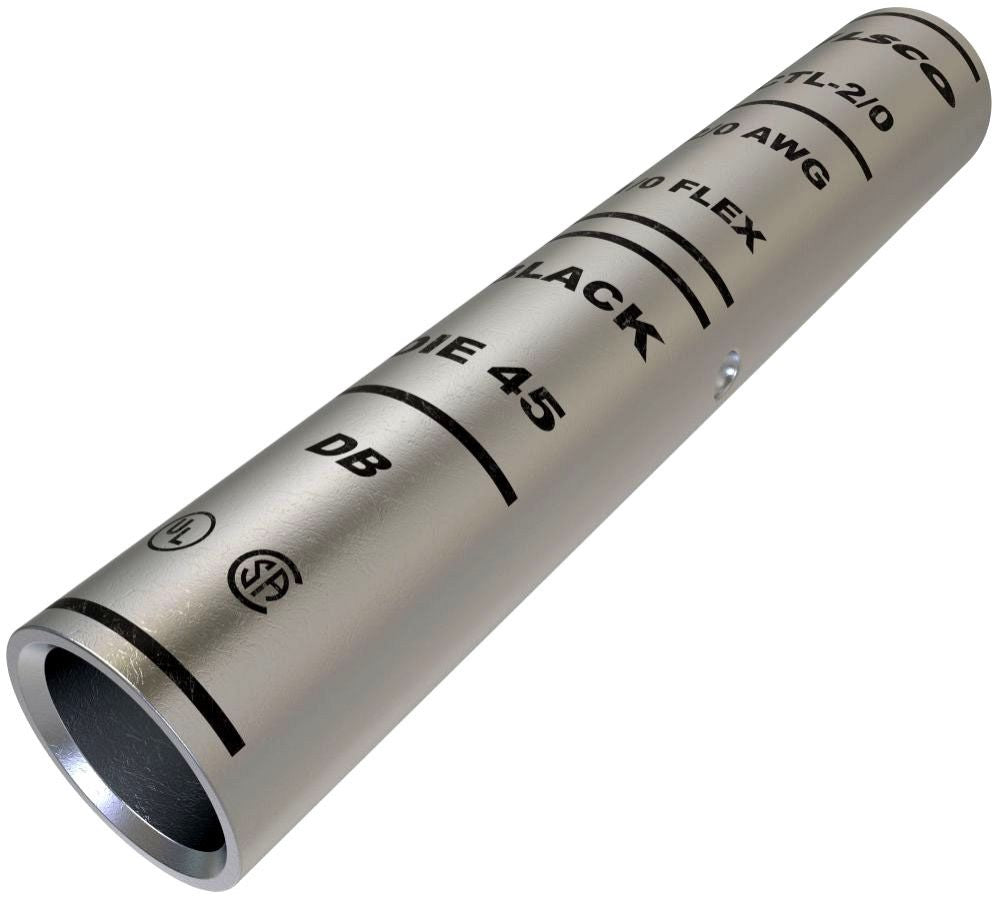

ILSCO CTL-2/0 Surecrimp Copper Compression Sleeve, Conductor Size 2/0, Long Barrel, Tin Plated, UL, CSA

Product Description

The ILSCO CTL-2/0 is a copper compression sleeve designed for conductor sizes 2/0 AWG. This long barrel sleeve offers reliable performance for various electrical applications. It is tin plated for enhanced corrosion resistance and is compliant with both UL and CSA standards.

• Designed for size 2/0 AWG conductors
• UL 453G and CSA approval
• Long barrel with chamfered end for easy installation

Product Highlights

This product is ideal for high voltage applications up to thirty-five kilovolts. It features a seamless copper body with electro-tin plating, providing excellent conductivity. The sleeve is adaptable with ILSCO Dieless Tools, ensuring maximum cable insertion and low contact resistance.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CTL-2/0
• Conductor Material: Copper
• Conductor Size: 2/0 AWG
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Outer Diameter: 0.562 Inches
• Inner Diameter: 0.44 Inches
• Type: Center Wire Stop
• Country of Origin: Mexico
