Product Description

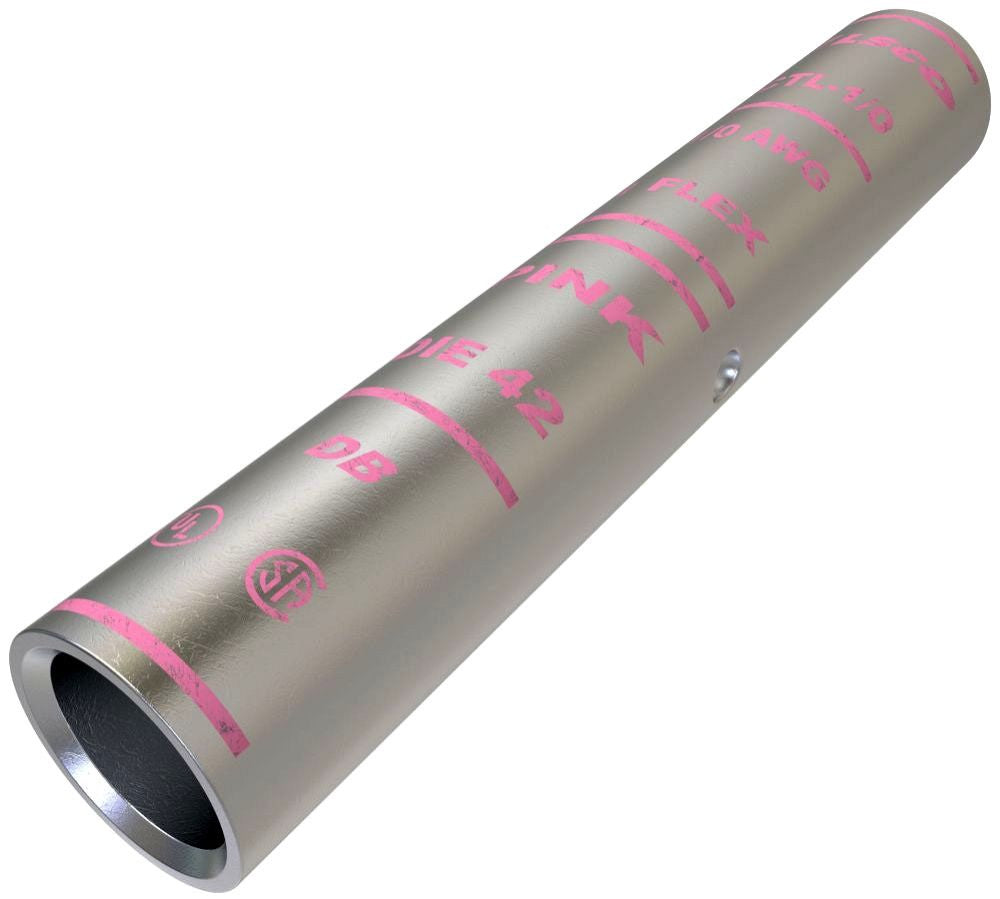

The ILSCO CTL-1/0 is a copper compression sleeve designed for conductor sizes 1/0. This long barrel sleeve features electro-tin plating and meets UL and CSA standards, making it suitable for various electrical applications.
- Conductor Size: 1/0 AWG
- Suitable for high voltage applications up to thirty-five kilovolts
- Manufactured by ILSCO, a recognized name in wire termination products
Product Highlights
The ILSCO CTL-1/0 compression sleeve insures optimal cable insertion and provides excellent conductivity. Its design allows for easy conductor insertion while reducing contact resistance.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
-
Country of Origin: Mexico
-
UPC: 783669127959
Technical Specifications
-
Catalog Number: CTL-1/0
-
Body Material: Electro-Tin Plated High Strength Seamless Copper
-
Conductor Material: Copper
-
Color Code: Pink
-
Inner Diameter: 0.39 inches
-
Outer Diameter: 0.515 inches
-
Barrel Type: Long with Chamfered End
-
Approval: UL 453G, UL 486A/B, CSA
