Description

Product Description

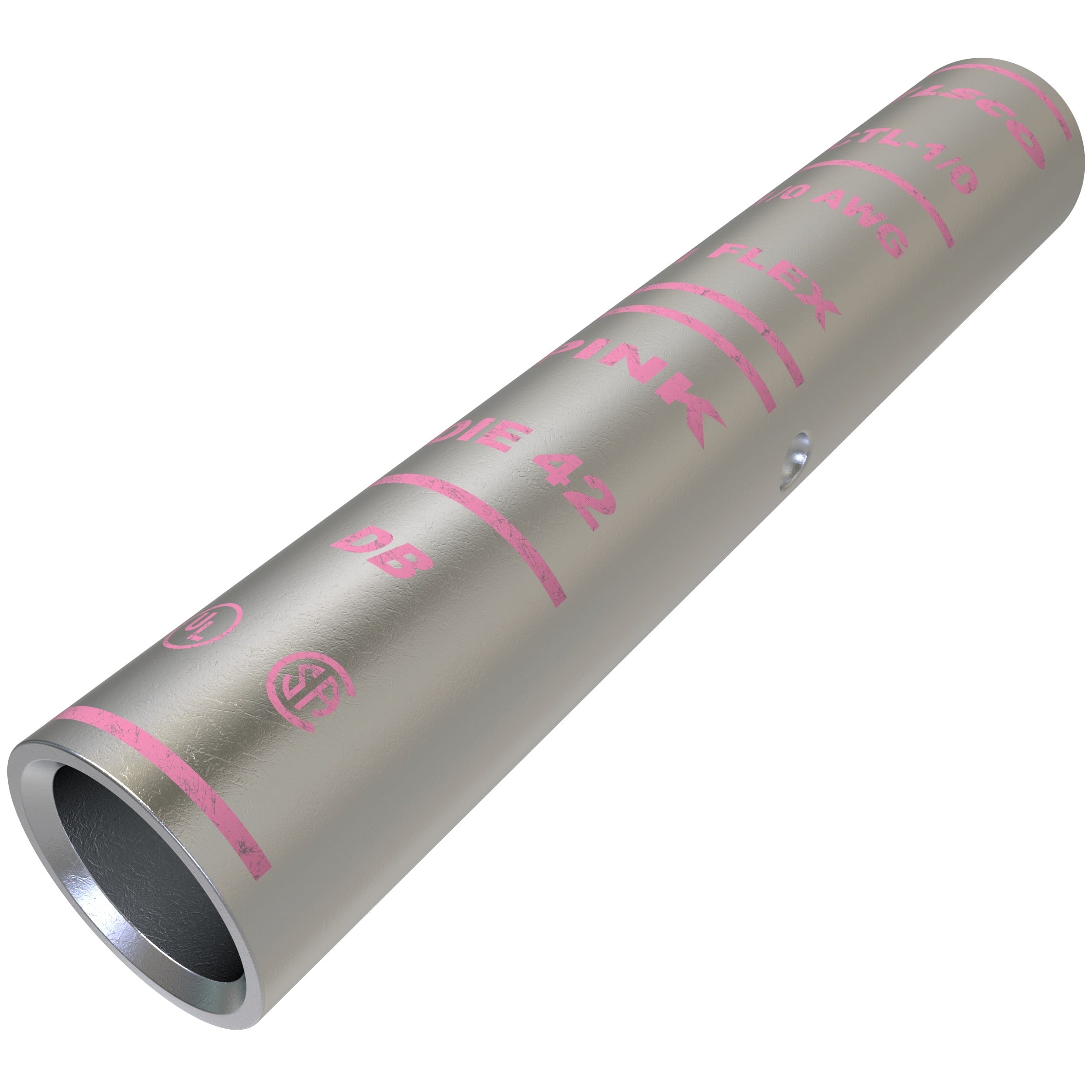

Ilsco CTL-1/0 is a SureCrimp copper compression sleeve for 1/0 AWG stranded conductors designed for compression terminations and splices. The long-barrel, tin-plated copper body measures 2.875 in long with a 0.390 in inside diameter and 0.515 in outside diameter, is UL 486A/B and UL 467 listed, and is rated 600 V and 90 C for grounding and bonding applications.

  • Long-barrel tin-plated copper sleeve for 1/0 AWG stranded conductors; center wire stop for proper insertion
  • Rated 600 V and 90 C; listed to UL 486A/B and UL 467 and CSA C22.2 No. 65-03 (UL File E6207; CSA File LR-29601)
  • Dimensions: 2.875 in length, 0.390 in inside diameter, 0.515 in outside diameter; die index I-42; parallel compression connection

Product Highlights

Long-barrel tin-plated copper compression sleeve for 1/0 AWG grounding and bonding terminations.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer Part Number: CTL-1/0
  • Country of Origin: Mexico
Technical Specifications
Manufacturer
Ilsco
Brand
Ilsco
MPN
CTL-1/0
Catalog Number
CTL-1/0
Sub Brand
SureCrimp
Material
Copper
Finish
Tin plated
Type
Compression sleeve
Barrel Type
Long (chamfered end)
Connection Type
Compression
Connector Type
Parallel
Conductor Size
1/0 AWG
Number of Conductors
1
Flex Conductor Range
1 G,H,I,K,M,DLO
Length
2.875 in
Inside Diameter
0.390 in
Outside Diameter
0.515 in
Dimensions (L x W x H)
2.875 x 0.515 x 0.515 in
Temperature Rating
90 C
Voltage Rating
600 V
Die Index / Die Code
I-42
Die Color Code
Pink
Standards / Listings
UL 486A/B; UL 467; CSA C22.2 No. 65-03 (UL File E6207; CSA File LR-29601)
Application
Grounding and bonding; compression splice and wire termination
Package Quantity
10
UPC
783669127959
GTIN
00783669127959
Country of Origin
Mexico
Weight
0.11 lb
Series
CTL Series
