ILSCO CT-1/0 Surecrimp Copper Compression Sleeve Conductor Size 1/0

Product Description

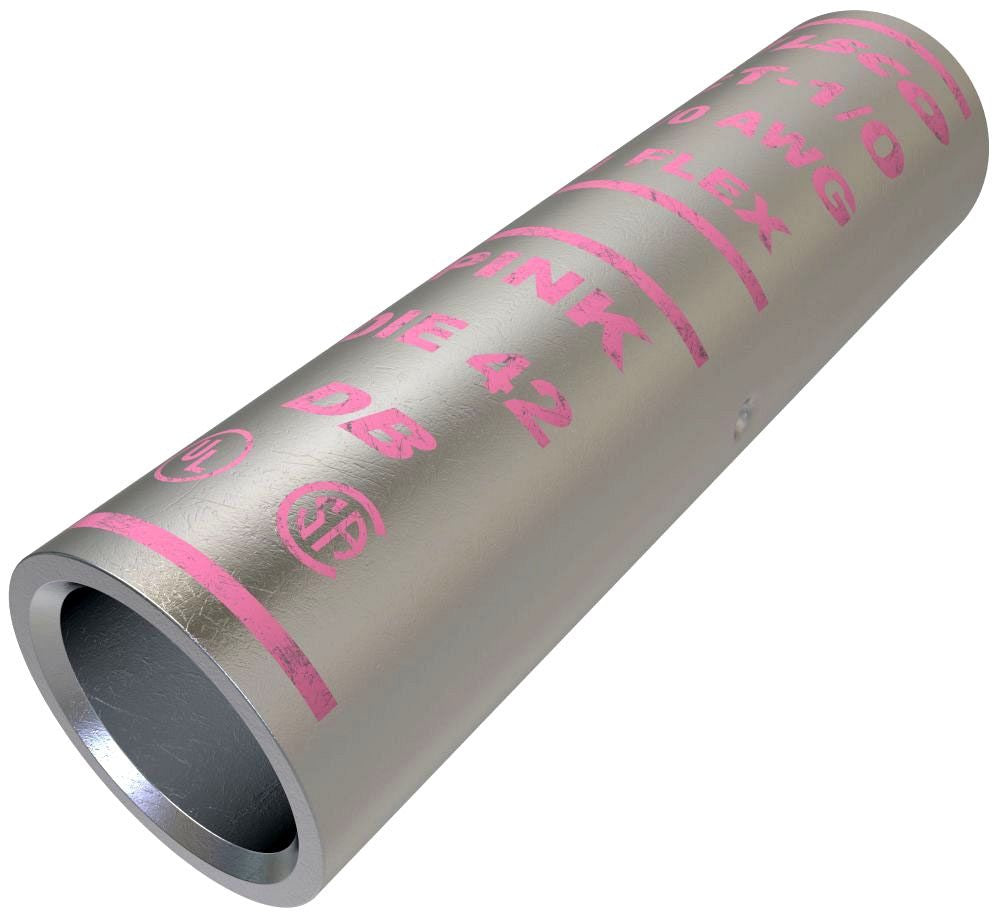

The ILSCO CT-1/0 is a copper compression sleeve designed for 1/0 AWG conductors. It is suitable for grounding, bonding, and direct burial applications. The sleeve features a short barrel design and is made from electro-tin plated high-strength seamless copper, ensuring maximum conductivity and excellent crimping characteristics.

• Wire range: 1/0 to 6 AWG
• UL and CSA approved
• Offers application versatility

Product Highlights

This copper compression sleeve is ideal for electrical connections that require reliability in high voltage settings.

Product Information

Standard Information

• Brand: ILSCO
• MPN: CT-1/0
• Manufacturer: ECM Industries
• UPC: 783669118148
• Country of Origin: Mexico

Technical Specifications

• Approval: UL 453G, UL 486A/B, CSA
• Barrel Type: Short with Chamfered End
• Body Material: Electro-Tin Plated High Strength Seamless Copper
• Color Code: Pink
• Conductor Material: Copper
• Conductor Size: 1/0 AWG
• Inner Diameter: 0.39 inches
• Outer Diameter: 0.515 inches
