Product Description

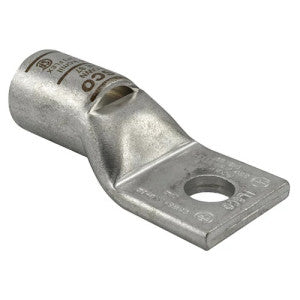

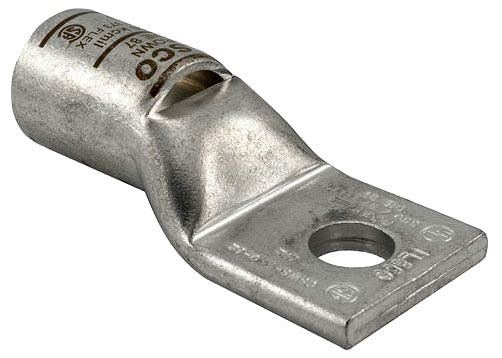

The ILSCO CSWS-8-38 is a compression lug designed for conductor size 8 with a one-hole configuration. It features a bolt size of three eighths inches and is suitable for various electrical applications. This compression lug is tin plated to enhance conductivity and provides a reliable connection in demanding environments.
- Suitable for conductor size 8 with a three eighths inch bolt size
- Designed for use in UL and CSA applications
- Features a standard barrel with a sight window for visual inspection
Product Highlights
The ILSCO CSWS-8-38 compression lug is built for maximum efficiency in wire termination. This product is ideal for grounding and bonding applications. Its design allows for low contact resistance, ensuring optimal performance.
Product Information
Standard Information
-
Catalog Number: CSWS-8-38
-
Manufacturer: ECM Industries
-
Brand: ILSCO
-
Country of Origin: United States
Technical Specifications
-
UPC: 783669627695
-
GTIN: 00783669627695
-
Material: Seamless Electro-Tin Plated Copper
-
Conductor Size: 8 AWG
-
Number of Pad Holes: 1
-
Die Index: I-21
-
Barrel Length: 0.5 inches
-
Stud Size: 3/8 inches
