Ilsco CSWS-8-10 SureCrimp copper compression lug 8 AWG 1-hole #10

Product Description

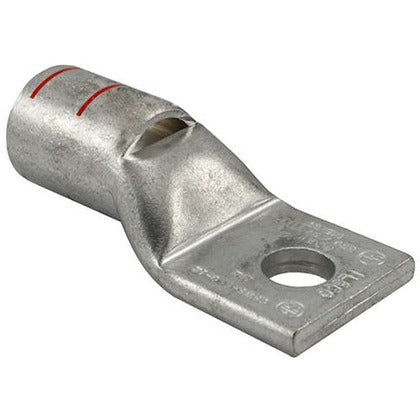

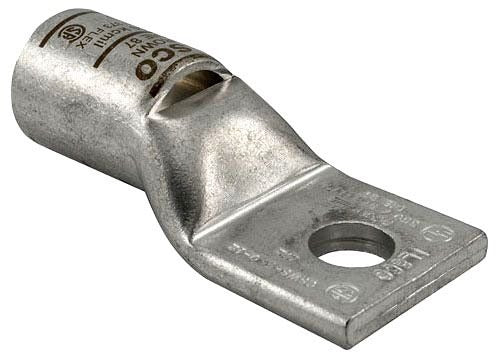

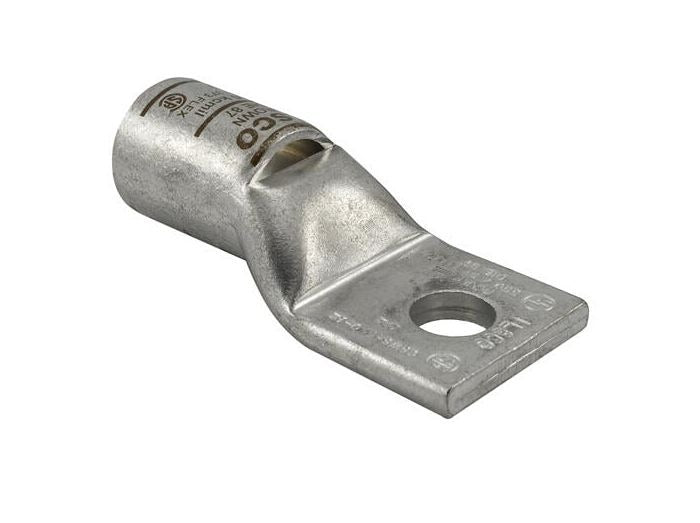

The ILSCO CSWS-8-10 is a SureCrimp copper compression lug designed to terminate 8 AWG conductors to a #10 stud. It features a short straight barrel (0.5 in) with a sight window, electro-tin plating for corrosion resistance, and seamless copper construction. The lug is UL and CSA listed, rated to 90 degrees C, and suitable for grounding, bonding, and general electrical termination applications.

• Seamless copper construction with electro-tin (tin) plated finish and sight window for visual conductor verification
• Accepts 8 AWG conductors (flex, solid, stranded) with a 1-hole design for #10 bolt/stud; barrel length 0.5 in
• Meets UL 486A/B and UL 467 listings and CSA standards; temperature rating 90 degrees C; die index I-21

Product Highlights

Short-barrel SureCrimp copper compression lug for 8 AWG to #10 stud, tin plated, 0.5 in barrel, sight window, UL/CSA listed, 90°C rating.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-8-10
• Country of Origin: India
