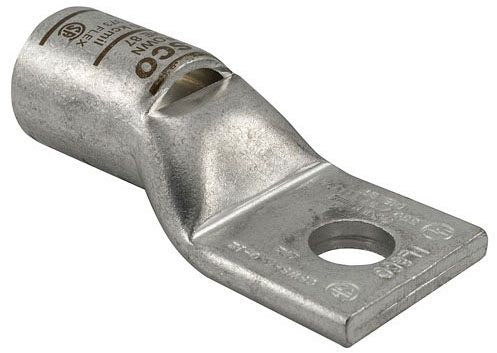

ILSCO CSWS-700-38 Compression Cable Lug 700MCM-400MCM 3/8 Bolt Hole

Product Description

ILSCO CSWS-700-38 is a compression cable lug designed for 700 KCMIL to 400 KCMIL applications. This lug is made from seamless copper tubing for enhanced conductivity and performance. The barrel length measures one point three seven five inches, featuring a chamfered entry for easy cable insertion.

• Manufactured from high strength seamless copper tubing
• Long barrel length with chamfered entry
• Color coded for identification

Product Highlights

This cable lug is suitable for both low voltage and high voltage applications up to thirty-five kilovolts when combined with proper insulation techniques. It reduces inventory requirements and provides a reliable connection for grounding and bonding purposes.

Product Information

Standard Information

• Manufacturer: ILSCO
• UPC: 783669648218

Technical Specifications

• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Barrel Length: 1.375 Inch
• Conductor Material: Copper
• Conductor Size: 700 KCMIL
• Stud Size: 3/8 Inch
• Pad Size: 0.875 Inch L x 1.816 Inch W x 0.259 Inch Thk
• Die Index: I-99
• Material: Seamless Electro-Tin Plated Copper
