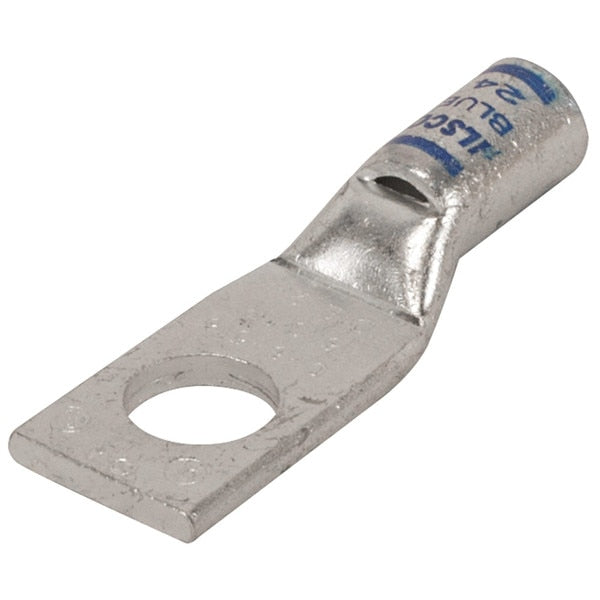

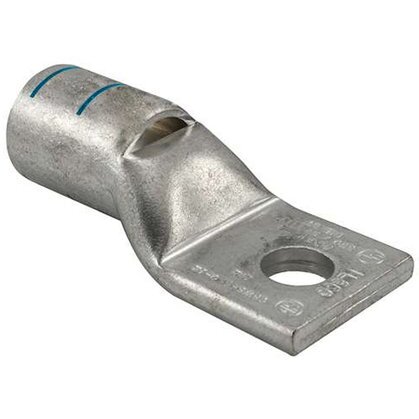

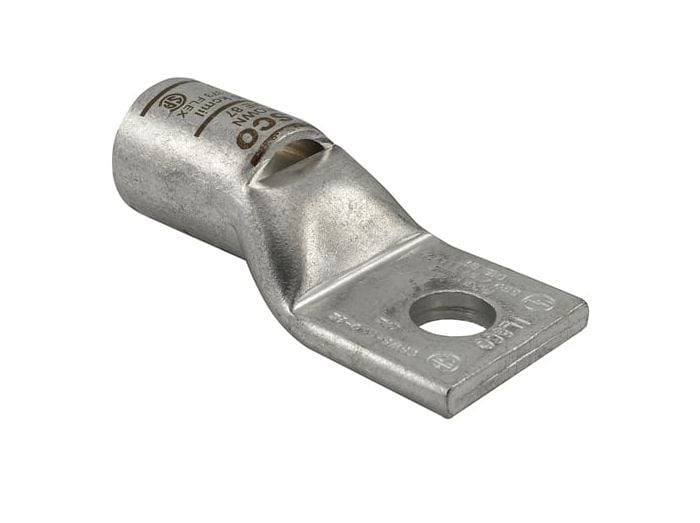

Ilsco CSWS-6-516 Surecrimp Copper Compression Lug 6 AWG 5/16in Bolt Size

Brand: ILSCO
SKU: CSWS-6-516
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ILSCO CSWS-6-516 Surecrimp Copper Compression Lug is designed for conductor size 6 with a 5/16in bolt size. It features a long barrel and a sight window. Constructed from high-strength seamless copper tubing and electro-tin plated, it offers maximum conductivity and excellent crimping characteristics.

  • Manufactured from high strength seamless copper tubing, electro-tin plated
  • Color coded
  • Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used

Product Highlights

This copper compression lug provides low contact resistance and is suitable for grounding and bonding applications.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer Part Number: CSWS-6-516
  • Country of Origin: Mexico
Technical Specifications
Conductor Type
Stranded
Barrel Marking
Ink
Barrel Type
Long
Connecting Angle
180
Connection
Compression
Contains DE-OX
No
Flared End
No
ILSCOs Die Catalog Number
ILD-24
ILSCOs Die Index Number
I-24
Mounting Hole Type
Thru
Narrow Tang
No
Number of Mounting Holes
1
Sight Window
Yes
Slotted
No
Tang End Shape
Square
Undrilled
No
Conductor Material
Copper
Connector Finish
Tin
Insulation
NA
Material
Copper
Mounting Bolt/Stud Size
5/16
Temperature Rating
90 C
Conductor Range CU Solid (Primary, run, main, line)
6 Sol
Conductor Range CU Stranded (Primary, run, main, line)
6 Str
Flex Conductor Range
6 G,H,I,K,M,DLO
Color
Blue
Voltage Rating
35 kV
CSA File Number
LR-29601
CSA Standard
C22.2 No. 65-03
NEBS Rating
Level 3
UL Control Number
453G
UL / CULUS Specification
UL 467 Listed
UL File Number
E6207
Barrel Length (IN)
1.125
Barrel Length (mm)
28.575
Dimension G (IN)
0.352
Dimension G (mm)
8.9408
Height (IN)
0.343
Height (mm)
8.7122
Inside Diameter (IN)
0.225
Inside Diameter (mm)
5.715
Length (IN)
2.195
Length (mm)
55.753
Mounting Hole Diameter (IN)
0.343
Mounting Hole Diameter (mm)
8.7122
Mounting Hole Spacing (mm)
0
Outside Diameter (IN)
0.313
Outside Diameter (mm)
7.9502
Strip Length (mm)
30.1498
Tang Length (IN)
0.875
Tang Length (mm)
22.225
Tang Thickness (IN)
0.087
Tang Thickness (mm)
2.2098
Tang Width (IN)
0.53
Tang Width (mm)
13.462
Width (IN)
0.53
Width (mm)
13.462
Bag Quantity
1
Direct Burial
Yes
Dual Rated
No
NEMA Code
S-588-3
Brand
ILSCO
Barrel Size
0.225 in ID x 0.312 in OD x 0.5 in L
Conductor Size
6 AWG
Die Code
ILD-24
Series
CSWS
Stud Size
5/16 in
Tongue Size
0.875 in L x 0.411 in W x 0.092 in THK
Type
1-Hole
Manufacturer Part Number
CSWS-6-516
Manufacturer
Ilsco
Product Series
CSWS
Family Series
Ilsco Terminals, CSWS Series
Description
Ring Terminal, 5/16in. Stud, 6AWG, Uninsulated, Copper, Single Hole, w/Site Hole, Std Barrel
Wire Size Range
6 AWG
Number of Conductors
1
Mounting
1-Hole
Standards
California Proposition 65
Allowable Gauge Range
6
MPN
CSWS6516
Termination Type
Compression
Number of Ports
1
Contact Material
Copper
