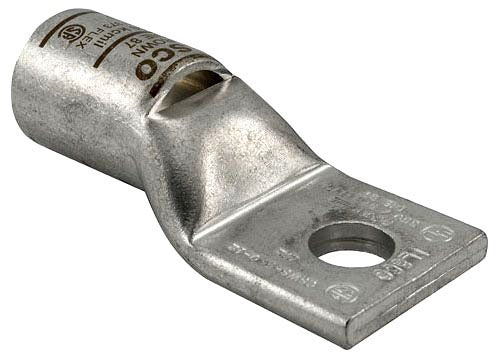

ILSCO CSWS-400-38 Compression Cable Lug 400MCM-4/0AWG 3/8 Bolt Hole

Product Description

The ILSCO CSWS-400-38 is a compression cable lug designed for sizes ranging from 400 KCMIL to 4/0 AWG. This product features a 3/8 inch bolt hole, making it suitable for various electrical applications.

• Manufactured from high-strength seamless copper tubing
• Long barrel length with chamfered entry for easy installation
• Color-coded for easy identification

Product Highlights

This compression cable lug offers low contact resistance and visual inspection capabilities through its sight hole and chamfered barrel. It is versatile enough for use in high voltage applications up to 35 kV, provided proper techniques are followed.

Product Information

Standard Information

• Manufacturer: ILSCO
• Manufacturer Name: ILSCO

Technical Specifications

• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Barrel Length: 1.188 inches
• Barrel Type: Standard
• Color: Blue
• Conductor Material: Copper
• Conductor Size: 400 KCMIL
• Die Index: I-76
• Material: Seamless Electro-Tin Plated Copper
• Number Of Pad Holes: 1
• Pad Size: 0.875 inches L x 1.365 inches W x 0.187 inches Thk
• Product UPC: 783669644098
• Stud Size: 3/8 inch
