Ilsco CSWS-350-58 terminal CU CMP 350 kcmil 21/32 T UL C SA

Product Description

The ILSCO CSWS-350-58 terminal is manufactured from high-strength seamless copper and suitable for use in circuits rated 35KV or less. It provides low contact resistance and offers maximum conductivity. The terminal is electro-tin plated and features a chamfered entry for easy conductor insertion. Rated to 90 degrees C.

• Manufactured from High Strength Seamless Copper
• Suitable for use in Circuits Rated 35KV or less
• Provide Low Contact Resistance

Product Highlights

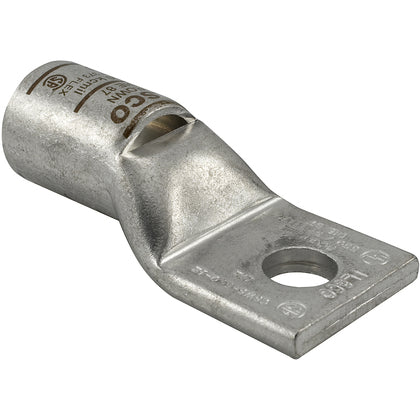

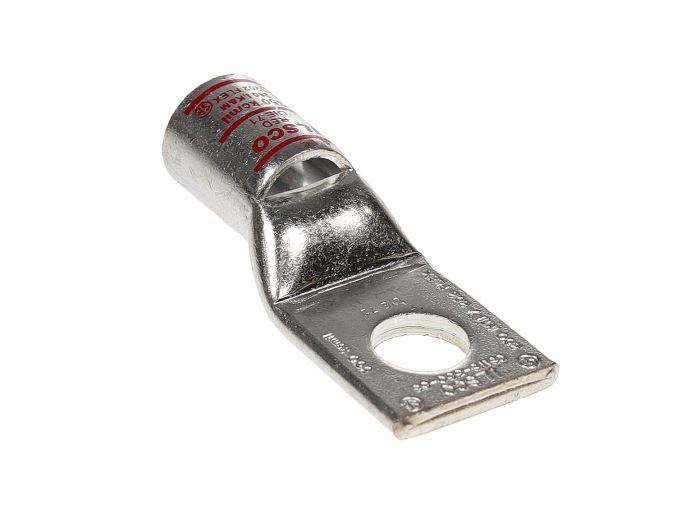

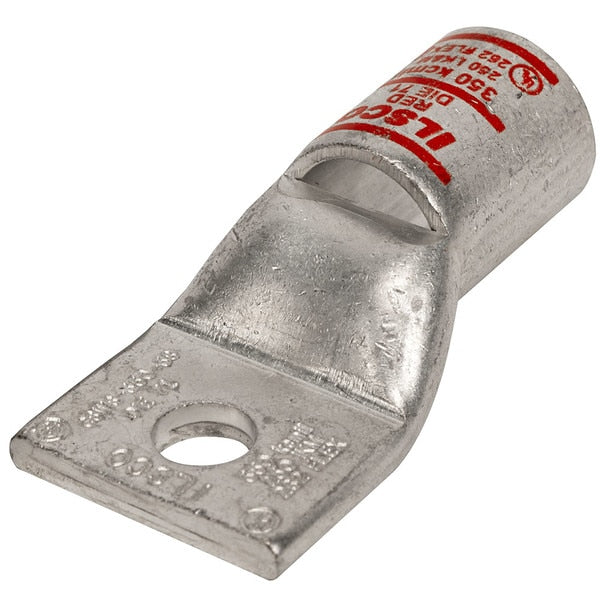

This copper compression lug features a standard barrel, 1-hole design with a sight hole, and is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-350-58
• Country of Origin: Mexico

Technical Specifications

• Manufacturer Part Number: CSWS-350-58
• Manufacturer: Ilsco
• Product Series: CSWS
• Family Series: Ilsco Terminals, CSWS Series
• Description: CU CMP 350 kcmil 21/32 T UL C SA
• Wire Size Range: 3/0 AWG-350 kcmil
• Stud Size: 5/8 "
• Number of Conductors: 1
• Material: Copper
• Color Code: Red
• Mounting: 1-Hole
• Standards: California Proposition 65
• Allowable Gauge Range: 350
