Ilsco CSWS-3-12 SureCrimp Copper Compression Lugs #3 AWG / #4 FLEX 25pk

Product Description

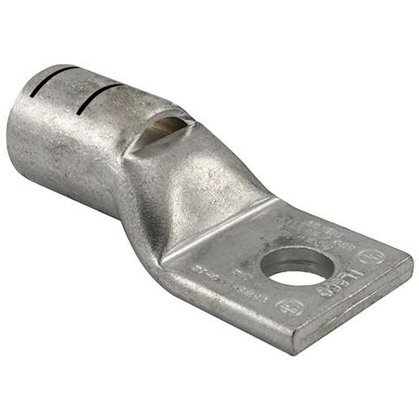

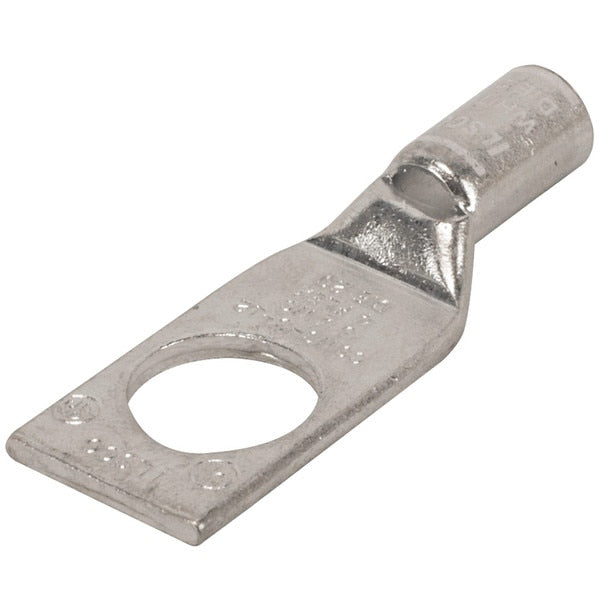

The ILSCO CSWS-3-12 SureCrimp Copper Compression Lugs are standard barrel, 1-hole lugs with a sight hole. These lugs accommodate wire sizes #3 AWG / #4 FLEX and feature a bolt/stud size of 1/2. They are rated up to 35kV at 90°C with proper high voltage spacing and insulation techniques.

• Standard barrel, 1-hole lug with sight hole
• Accommodates #3 AWG / #4 FLEX wire sizes
• Electro-tin plated for corrosion resistance

Product Highlights

These copper compression lugs offer maximum conductivity and excellent crimping characteristics for grounding and bonding applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-3-12
• Country of Origin: Mexico

Technical Specifications

• Rated up to: 35kV at 90°C (proper high voltage spacing and insulation techniques required)
• Wire entry: Chamfered wire entry provides ease of installation
• UL Listings: UL467 Listed 8AWG to 500kcmil,UL468A/B Listed 600kcmil to 750kcmil
• Material: Copper
• Plating: Electro-tin plated
• Color coding: Color coded
• Certifications: UL listed and CSA certified with ILSCO and major competitor’s compression tools such as Panduit, Burndy, T&B and more.
• Ilsco color code: White, Die index: I-29
• Burndy color code: White, Die index: 9
• T&B color code: Gray, Die index: 29
• Wire types: Rated for Class B & C Building Wire Rated for Class G, H & I Flex Wire Rated for Class K & M Weld Wire Rated for Class DLO Locomotive Wire
• UL File #: E6207
• Mounting: 1-Hole
• Standards: California Proposition 65
• Allowable Gauge Range: 3
• Stud Size: 1/2 in
