Ilsco CSWS-2-12 SureCrimp Copper Compression Lug 2 AWG 1/2in Bolt

Product Description

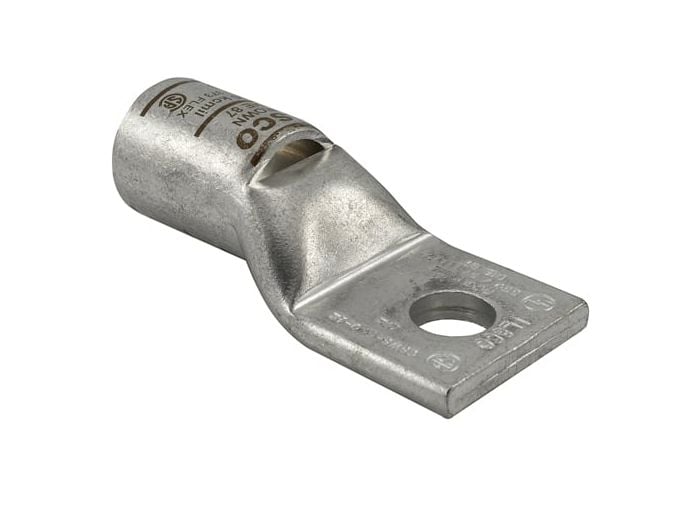

The ILSCO CSWS-2-12 SureCrimp® copper compression lug is made from copper and tin plated. This uninsulated lug features a standard barrel, standard tang, and one mounting hole. It is suitable for use in circuits rated 35KV or less and provides low contact resistance and maximum conductivity. Rated to 90 degrees C.

• Copper material with tin plating
• Suitable for use in circuits rated 35KV or less
• Standard barrel and tang with 1 mounting hole

Product Highlights

The ILSCO CSWS-2-12 copper compression lug ensures reliable connections with its durable construction and high conductivity.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-2-12

Technical Specifications

• Applications: Terminating Connector
• Barrel Length: 0.625 in
• Barrel Type: Chamfered Entry, Short, Standard
• Bolt Size: 1/2 IN
• Conductor Material: Copper
• Conductor Size: 2 AWG Stranded, 6-2 AWG Expanded
• Conductor Type: Stranded
• Connection Type: Compression
• Direct Burial?: Yes
• Material: Copper
• Mounting Hole Size: 0.562 in
• Number of Holes: 1 Hole
• Standard: CSA,E2186,UL
• Stud Size: 1/2 in
• Temperature Rating: 90 degrees C
• Type: Uninsulated
• Voltage: 35 Volt
• Brand: Ilsco
• Sub Brand: SureCrimp
• Manufacturer Part Number: CSWS-2-12
• Manufacturer: Ilsco
• Product Series: CSWS
• Family Series: Ilsco Terminals, CSWS Series
• Description: Ring Terminal, #12 Stud, 2-6AWG, Uninsulated, Copper, Single hole
• Wire Size Range: 6-2 AWG
• Number of Conductors: 1
• Finish: Electro Tin Plated
