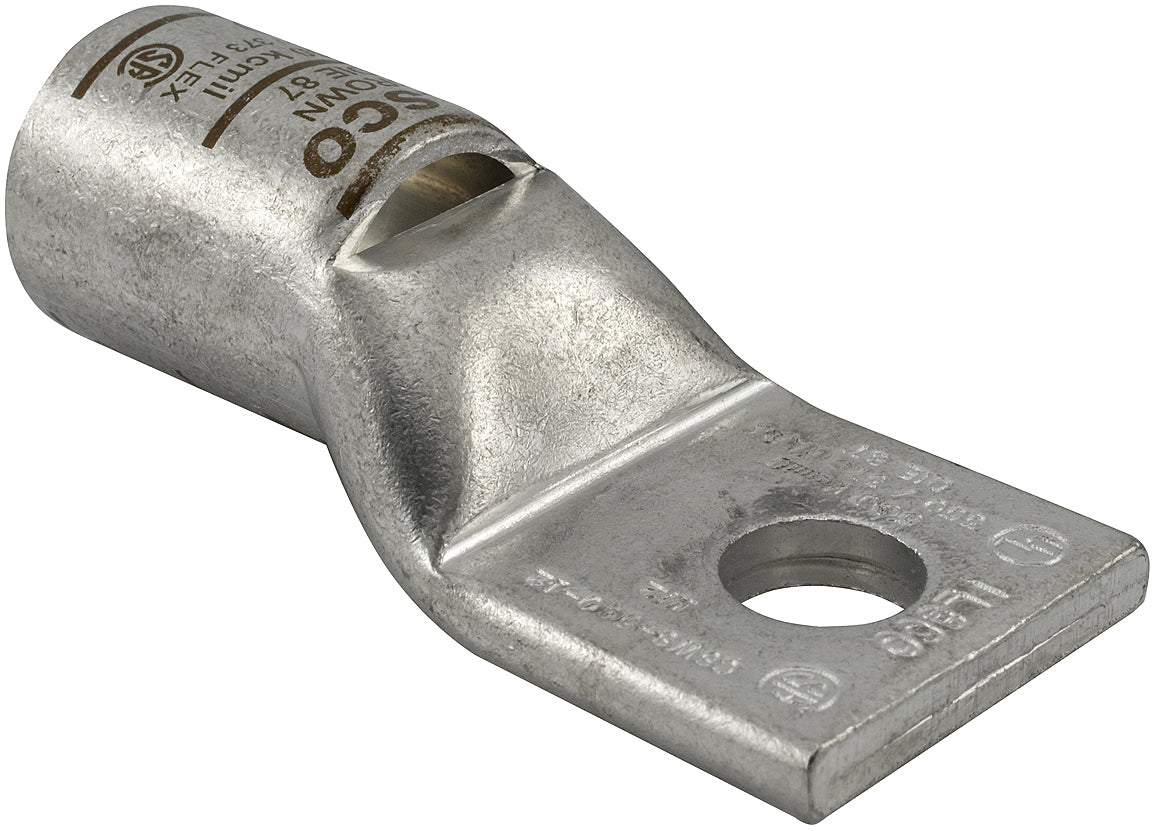

Ilsco CSWS-1-516 SureCrimp® Copper Compression Lug, Conductor Size 1, 1 Hole, 5/16in Bolt Size, Standard Barrel

Brand: ILSCO
SKU: CSWS-1-516
Availability: In Stock

Ships same day if ordered by 12 pm
$14.99
$14.99
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The ILSCO CSWS-1-516 SureCrimp® copper compression lug is a tin-plated connector designed for terminating connections. Constructed from copper, it features a standard barrel and tang with one mounting hole for a 5/16in bolt. It is UL 486A/B and UL 467 Listed and rated for up to 35 kV.

  • Made of copper with tin plating
  • Features a standard barrel and tang
  • Suitable for flex and stranded conductors

Product Highlights

This copper compression lug ensures secure and reliable connections for a variety of applications.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer Part Number: CSWS-1-516
  • Country of Origin: Mexico
Technical Specifications
Catalog Number
CSWS-1-516
Brand
Ilsco
Sub Brand
SureCrimp®
Material
Copper
Finish
Tin Plated
Voltage
600 VAC to 35 kV VAC
Standard
UL Specifications: UL 486A-B UL 467,CSA File Number: LR-29601,NEBS Rating: LEVEL 3,UL File Number: E6207
Bolt Size
5/16 IN
Stud Size
5/16 in
Barrel Type
Short
Applications
Terminating Connector
Strip Length
17.449 mm
Barrel Length
0.625 in
Conductor Size
1 AWG/6-1 AWG
Conductor Type
Flex,Stranded
Direct Burial?
Yes
Overall Length
1.830 in
Connection Type
Compression
Inside Diameter
0.359 in
Number of Holes
1 Hole
Outside Diameter
0.469 in
Conductor Material
Copper
Mounting Hole Size
0.343 in
Temperature Rating
90 degrees C
Type
Straight, Non-Insulated, 1-Hole
Width
0.673 in
Height
0.499 Inch
Length
1.83 Inch
Country of Origin
Mexico
Made in USA
No
Die index
I-37
Series
CSWS
Wire Strip Length
0.687 in
Number of Conductors
1
