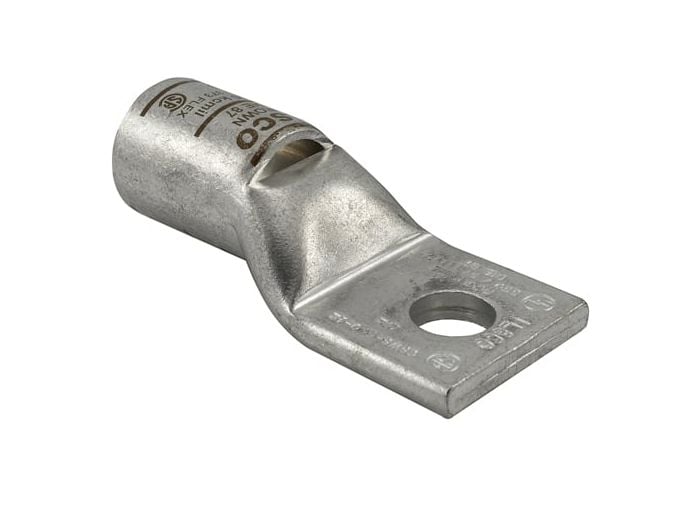

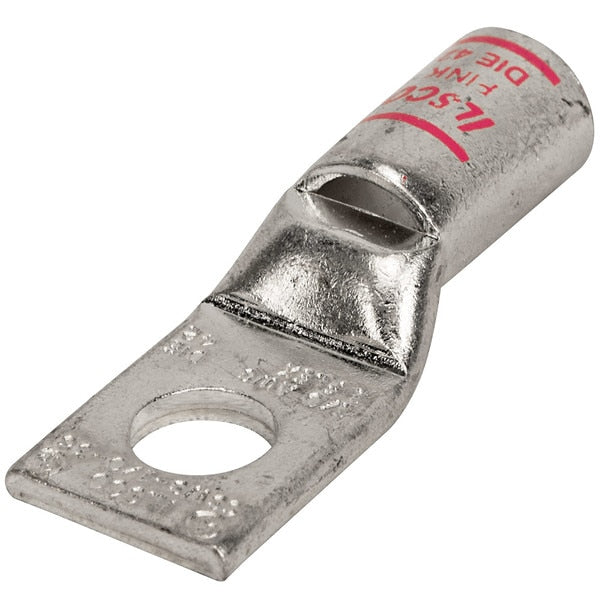

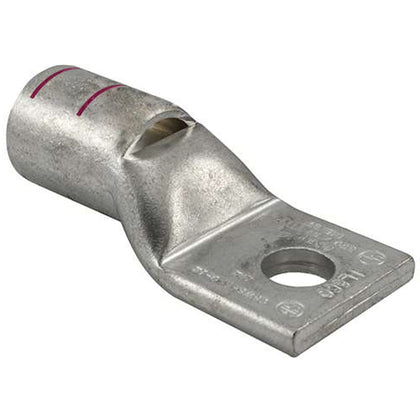

Ilsco CSWS-1/0-14 Surecrimp Copper Compression Lug 1/0 1 Hole 1/4in Bolt Size

Product Description

The ILSCO CSWS-1/0-14 Surecrimp Copper Compression Lug is designed for conductor size 1/0 with 1 hole and a 1/4in bolt size. It features a standard barrel and a sight window for easy inspection. Constructed from high-strength seamless copper tubing and electro-tin plated, this lug is suitable for circuits rated 35KV or less.

• Conductor Size 1/0
• 1 Hole, 1/4in Bolt Size
• Standard Barrel with Sight Window

Product Highlights

This copper compression lug ensures a reliable connection with maximum conductivity and is UL and CSA certified.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWS-1/0-14
• Country of Origin: Mexico

Technical Specifications

• Conductor Type: Stranded
• Barrel Marking: Ink
• Barrel Type: Standard
• Connecting Angle: 180
• Connection: Compression
• Flared End: No
• ILSCOs Die Catalog Number: ILD-42
• ILSCOs Die Index Number: I-42
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No
• Conductor Material: Copper
• Connector Finish: Tin
• Insulation: NA
• Material: Copper
• Mounting Bolt/Stud Size: 1/4
• Temperature Rating: 90 C
• Conductor Range CU Stranded (Primary, run, main, line): 1/0 Str
• Conductor Range AL Solid (Primary, run, main, line): NA
• Expanded Conductor Range: 1/0 Str - 6 Str
• Flex Conductor Range: 1 G,H,I,K,M,DLO
• Color: Pink
• Color Code: Pink
• Voltage Rating: 35 kV
• Barrel Length (IN): 0.75
• Barrel Length (mm): 19.05
• Dimension G (IN): 0.321
• Dimension G (mm): 8.1534
• Height (IN): 0.55
• Inside Diameter (IN): 0.39
• Inside Diameter (mm): 9.906
• Length (IN): 1.981
• Length (mm): 50.3174
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.515
• Outside Diameter (mm): 13.081
• Strip Length (mm): 20.6248
• Tang Length (IN): 0.875
• Tang Length (mm): 22.225
• Tang Thickness (IN): 0.125
• Tang Thickness (mm): 3.175
• Tang Width (IN): 0.738
• Tang Width (mm): 18.7452
• Width (IN): 0.738
• Width (mm): 18.7452
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Manufacturer Part Number: CSWS-1/0-14
• Manufacturer: Ilsco
• Product Series: CSWS
• Family Series: Ilsco Terminals, CSWS Series
• Description: Ringe Terminal, 1/4in. Stud, 1/0-6AWG, Uninsulated
• Wire Size Range: 6-1/0 AWG
• Stud Size: 1/4 "
• Number of Conductors: 1
• Net Weight: 0.055 lbs
• Gross Weight: 0.055 lbs
• Rated up to: 35kV at 90 C (proper high voltage spacing and insulation techniques required)
• Wire entry: Chamfered wire entry provides ease of installation
• Plating: Electro-tin plated
• Standards: California Proposition 65
• Allowable Gauge Range: 1/0
