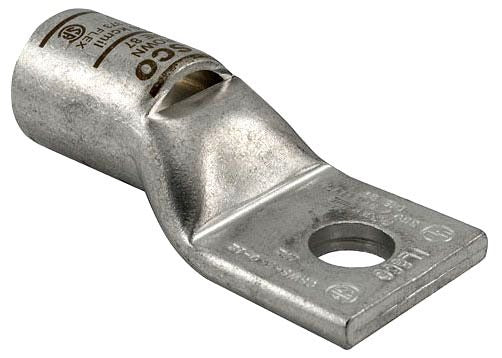

ILSCO CSWS-1/0-12 Surecrimp Copper Compression Lug 1/0 1 Hole 1/2 in Bolt Size

Product Description

The ILSCO CSWS-1/0-12 is a copper compression lug designed for secure wire connections. This lug is suitable for 1/0 AWG conductors with a one-half inch bolt size. It features a standard barrel design and is tin plated for enhanced conductivity.

• Designed for 1/0 AWG conductors
• Standard barrel with a sight window
• UL and CSA listed for safety

Product Highlights

The CSWS-1/0-12 is ideal for electrical installations requiring reliable and efficient connections. This lug allows easy insertion of conductors, ensuring low contact resistance and a secure connection for grounding and bonding applications.

Product Information

Standard Information

• Catalog Number: CSWS-1/0-12
• Manufacturer: ECM Industries

Technical Specifications

• UPC: 783669651201
• Country of Origin: Mexico
• Stud Size: 1/2 inch
• Barrel Length: 0.75 inch
• Color: Pink
• Die Index: I-42
• Conductor Material: Copper
• Number of Pad Holes: 1
