Product Description

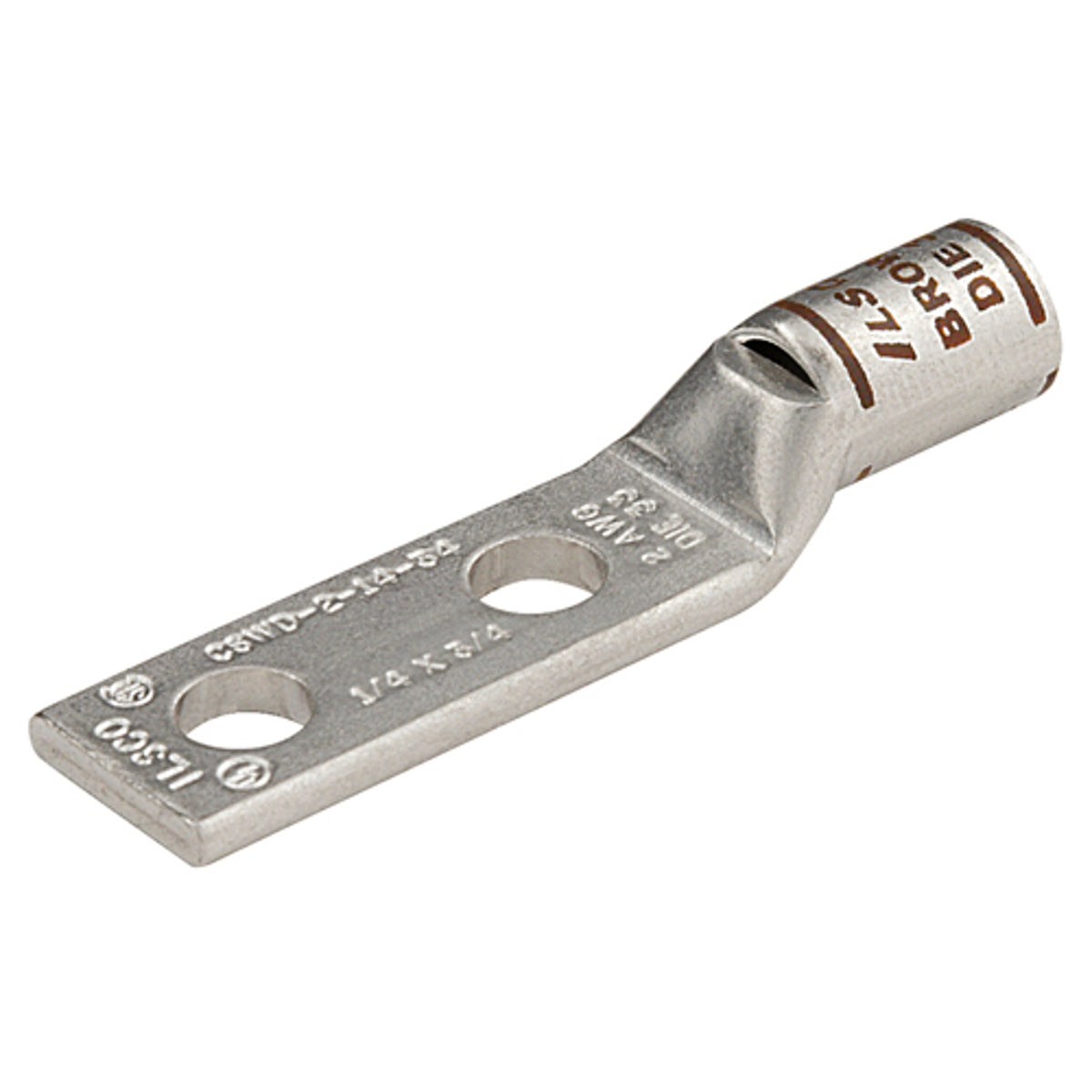

The ILSCO CSWD-6-38-1 is a copper compression lug designed for effective electrical connections. This product features a bolt size of three eighths inches and accommodates conductor size six AWG. It includes two holes for mounting, along with standard barrel specifications and a sight window for easy installation verification.
- Constructed from seamless copper for maximum conductivity
- UL and CSA listed for safety compliance
- Suitable for high voltage applications up to thirty-five kilovolts
Product Highlights
This compression lug ensures a reliable connection for electricians and technicians in various applications. Its robust design allows for versatility in both residential and commercial electrical work.
Product Information
Standard Information
-
Catalog Number: CSWD-6-38-1
-
Manufacturer: ECM Industries
Technical Specifications
-
Material: Seamless Electro-Tin Plated Copper
-
Conductor Size: 6 AWG
-
Bolt Size: 3/8 Inch
-
Hole Spacing: 1 Inch
-
Approval: UL 453G, UL 467, UL 486A/B, CSA
-
Length: 2.632 inches
-
Width: 0.598 inches
-
Height: 0.343 inches
