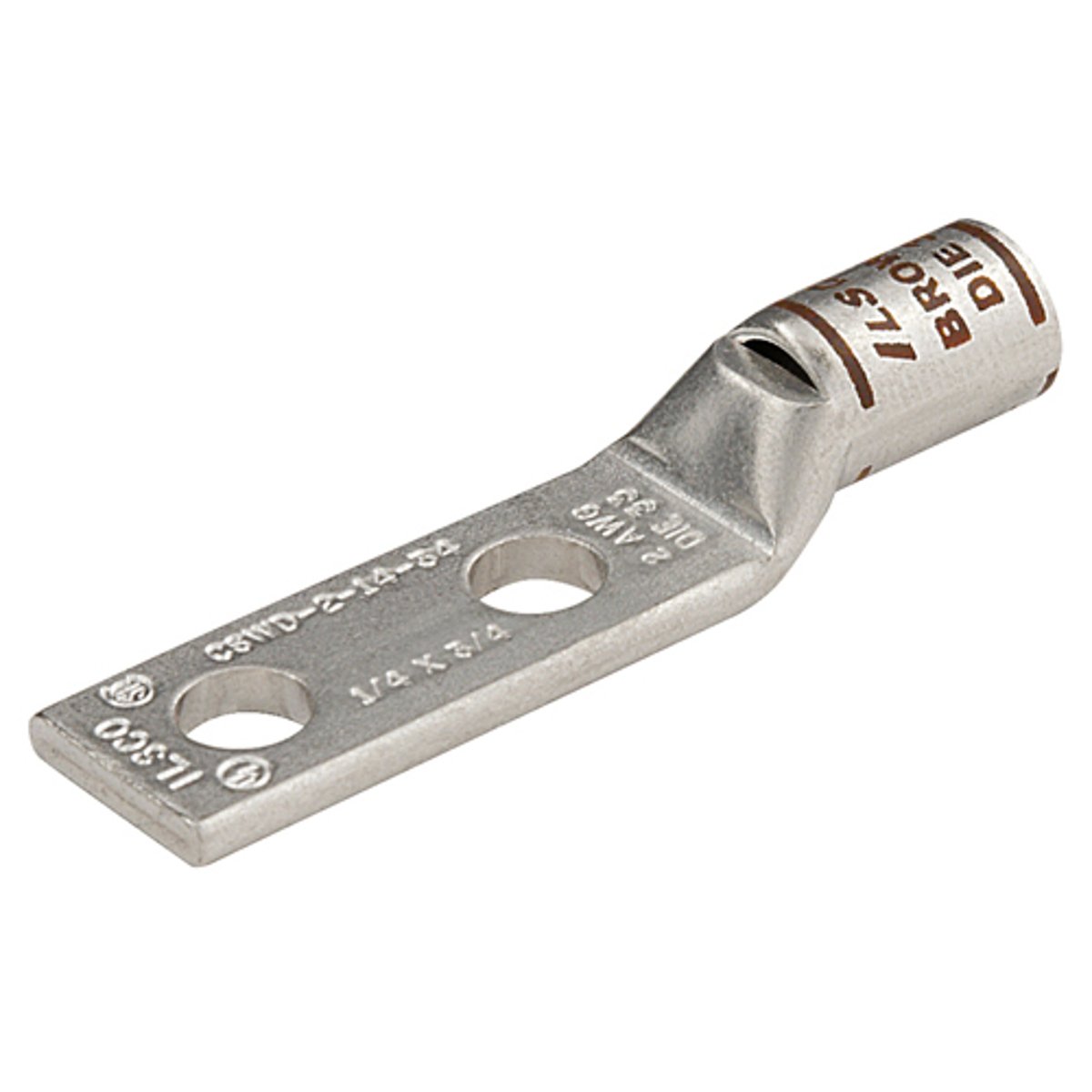

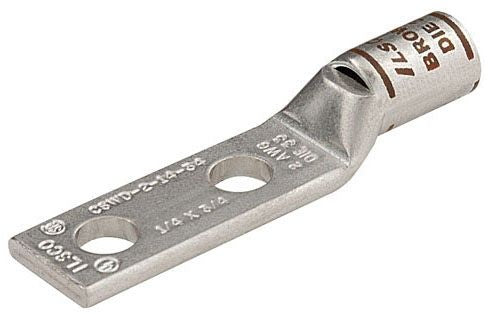

ILSCO CSWD-350-38-1 Surecrimp Copper Compression Lug 350 KCMIL 2 Holes 3/8 Inch Bolt Size

Product Description

The ILSCO CSWD-350-38-1 is designed for reliable wire termination. This copper compression lug is suitable for conductors sized at three hundred fifty KCMIL. It features two holes for easy installation with a three-eighths inch bolt size. This product is ideal for high conductivity and excellent crimping characteristics.

• Made from high strength seamless copper tubing.
• Long barrel length with a chamfered entry for easy conductor insertion.
• Color coded for easy identification.

Product Highlights

This compression lug is suitable for various applications including grounding and bonding. It provides low contact resistance, ensuring effective electrical connections.

Product Information

Standard Information

• Catalog Number: CSWD-350-38-1
• Manufacturer: ECM Industries
• Brand: ILSCO

Technical Specifications

• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Barrel Length: 1.063 inches
• Color: Red
• Conductor Material: Copper
• Conductor Size: 350 KCMIL
• Material: Seamless Electro-Tin Plated Copper
• Number of Pad Holes: 2
• Pad Hole Spacing: 1 inch
• Stud Size: 3/8 inches
