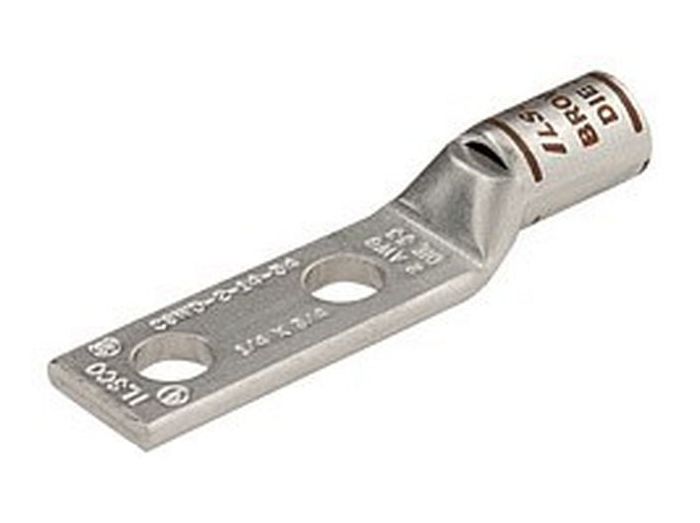

Ilsco CSWD-250-38-134 Copper Compression Lug

Product Description

The ILSCO CSWD-250-38-134 is a copper compression lug. It is suitable for use in circuits rated 35KV or less and manufactured from high strength copper. This lug provides low contact resistance and offers maximum conductivity. Rated to 90 degrees C, it features a chamfered entry and is electro-tin plated.

• Suitable for use in Circuits Rated 35KV or less
• Manufactured from High Strength Copper
• Provide Low Contact Resistance

Product Highlights

The ILSCO copper compression lug is CSA certified, color coded and UL listed.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWD-250-38-134
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: CSWD-250-38-134
• Manufacturer: Ilsco
• Product Series: CSWD
• Family Series: Ilsco Terminals, CSWD Series
• Description: CU CMP 250 kcmil 13/32-1-3/4 T UL CSA
• Wire Size Range: 1/0 AWG-250 kcmil
• Stud Size: 3/8 "
• Number of Conductors: 1
• Material: Copper
• Color Code: Yellow
• NEMA Code: S-588-3
• UPC Code: 78366964149
• Barrel Length (IN): 0.625
• Barrel Length (mm): 15.875
• Dimension G (IN): 0.352
• Dimension G (mm): 8.9408
• Height (IN): 0.451
• Height BX (IN): 2.25
• Height (mm): 11.4554
• Inside Diameter (IN): 0.312
• Inside Diameter (mm): 7.9248
• Length (IN): 2.598
• Length (mm): 65.9892
• Standards: California Proposition 65
