Ilsco CSWD-2/0-38-1 Compression Cable Lug 35 kV (2/0-4 AWG 3/8 in 2-Hole)

Product Description

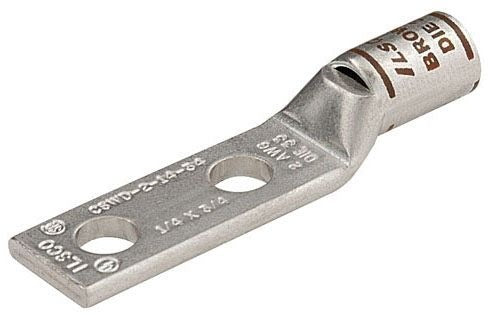

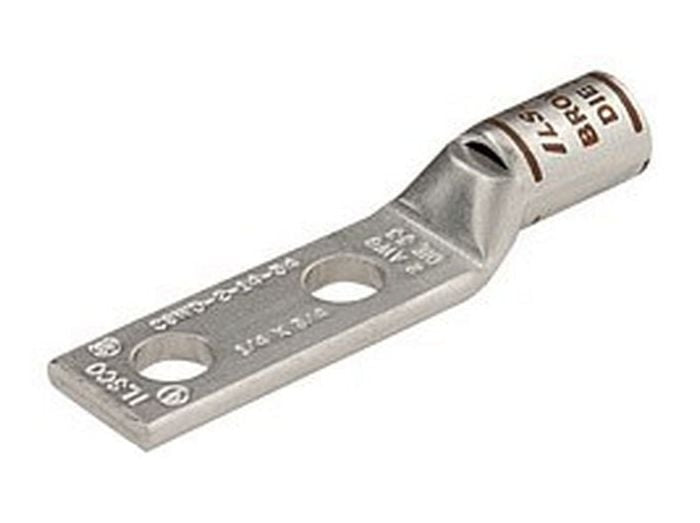

The ILSCO CSWD-2/0-38-1 is a two-hole copper compression cable lug for 2/0 to 4 AWG conductors with a 3/8 inch stud hole. Manufactured from seamless electro-tin plated copper, it features a long chamfered-entry barrel with a sight hole for conductor inspection and provides low contact resistance for grounding and bonding. The lug is rated for use in circuits up to 35 kV when proper spacing and insulation are applied.

• Seamless electro-tin plated copper construction with long chamfered-entry barrel and sight hole for visual inspection
• Accepts 2/0 to 4 AWG conductors, two mounting holes with 3/8 inch stud size and 1 inch hole spacing
• UL and CSA approvals (UL 453G, UL 467, UL 486A/B), rated to 35 kV and 90 C; suitable for grounding and bonding

Product Highlights

Two-hole copper compression lug with sight window and chamfered barrel; 2/0-4 AWG, 3/8 in stud, 35 kV rating, UL and CSA listed

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CSWD-2/0-38-1
• Country of Origin: USA
