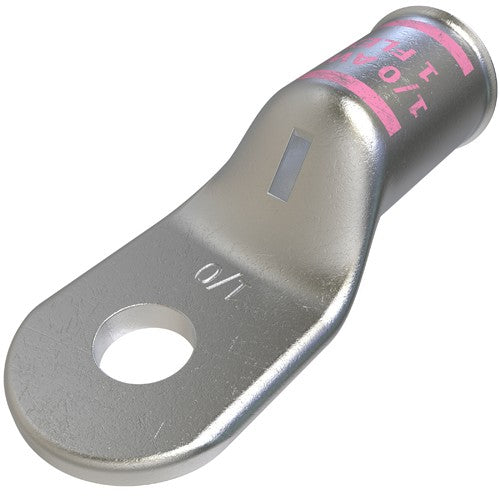

Ilsco CRA-1-14M 1-Hole Copper Compression Lug

Product Description

The ILSCO CRA-1-14M is a 1-Hole Copper Compression Lug. Suitable for use in circuits rated 35KV or less, it provides low contact resistance and is rated to 90 degrees C. The lug features a solid seamless tang, electrolytic copper construction, and electro-tin plating. It is designed for high conductivity and performance.

• Suitable for use in Circuits Rated 35KV or less
• Provide Low Contact Resistance
• For Performance and Strength

Product Highlights

The ILSCO CRA-1-14M copper compression lug ensures a secure and reliable electrical connection. It is ideal for various applications requiring a durable and high-performance lug.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CRA-1-14M

Technical Specifications

• Manufacturer Part Number: CRA-1-14M
• Manufacturer: Ilsco
• Product Series: CRAM
• Family Series: Ilsco Terminals, CRAM Series
• Description: CU CMP 1 1/4 T UL CSA
• Wire Size Range: 1/0 AWG
• Stud Size: 1/4 "
• Number of Conductors: 1
• Material: Electro Tin Plated
• Color Code: Pink
• NEMA Code: S-588-3
• UPC Code: 78366909822
• Barrel Length (IN): 0.625
• Barrel Length (mm): 15.875
• Dimension G (IN): 0.425
• Dimension G (mm): 10.795
• Height (IN): 0.58
• Height (mm): 14.732
• Inside Diameter (IN): 0.407
• Inside Diameter (mm): 10.3378
• Length (IN): 1.9
• Length (mm): 48.26
