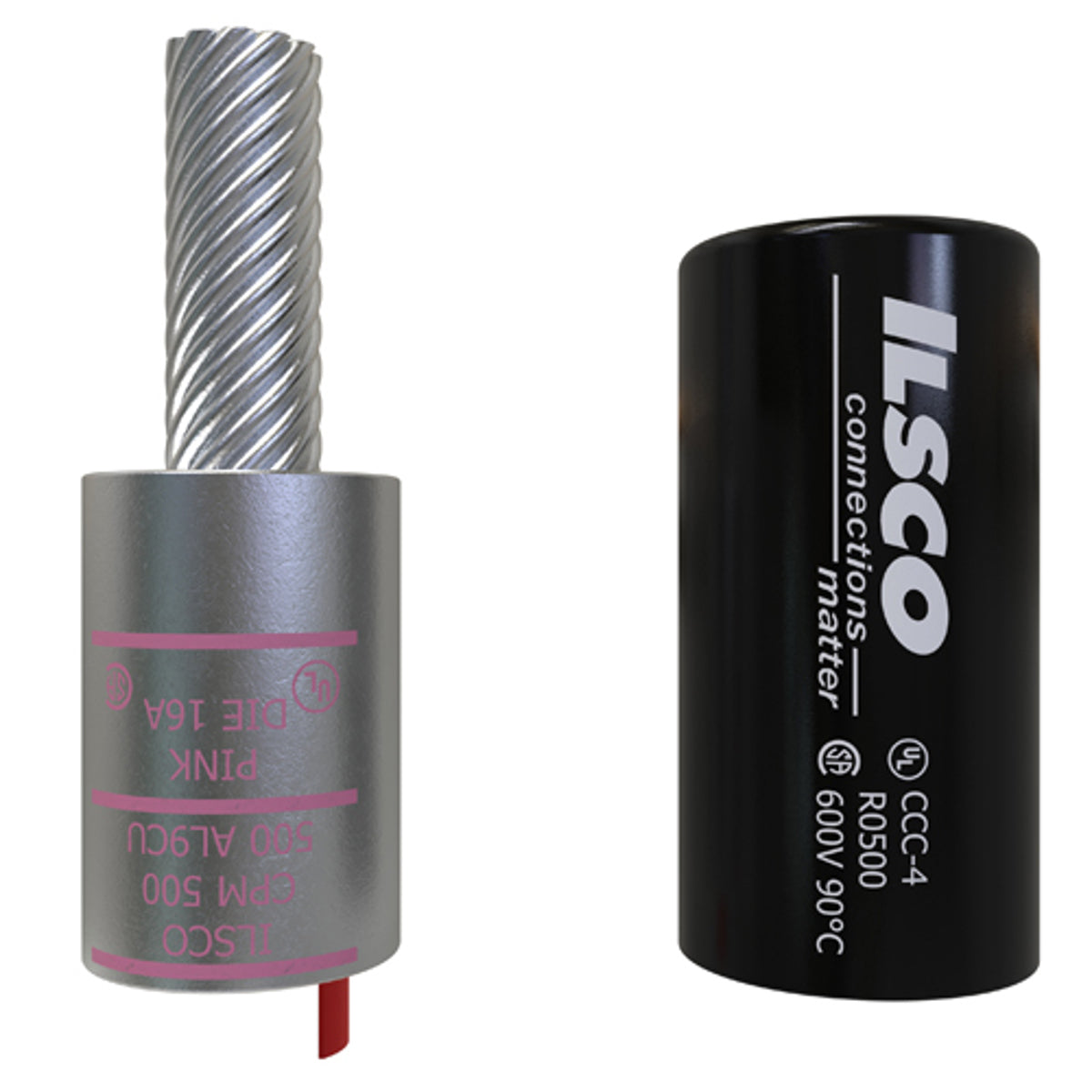

Ilsco CPM-500 Copper Compression Pigtail Adaptor 500MCM CU

Product Description

Ilsco CPM-500 is a copper compression pigtail adaptor designed for conductor size 500. This pigtail allows effective termination of both copper and aluminum wires, ensuring maximum conductivity and reliability. The barrel is made from high strength aluminum alloy, enabling easy insertion into equipment.

• Manufactured from high conductivity copper for optimal performance.
• Clearly marked for easy identification of wire size and die index.
• Prefilled with De-Ox to reduce oxidation risk.

Product Highlights

Reliable connection for wire termination and compression. Rated for full ampacity, ensuring safe electrical conductivity for heavy-duty applications.

Product Information

Standard Information

• Brand: Ilsco
• Manufacturer: ECM Industries

Technical Specifications

• MPN: CPM-500
• Conductor Size: 500 KCMIL
• Material: High strength aluminum alloy barrel, high conductivity copper pigtail
• Approval: UL 486A/B, CSA
• Cover Size: 2-13/32 inches
• Pin Size: 11/16 inches diameter x 1-7/8 inches length
• Country of Origin: Mexico
• UPC: 783669008647
