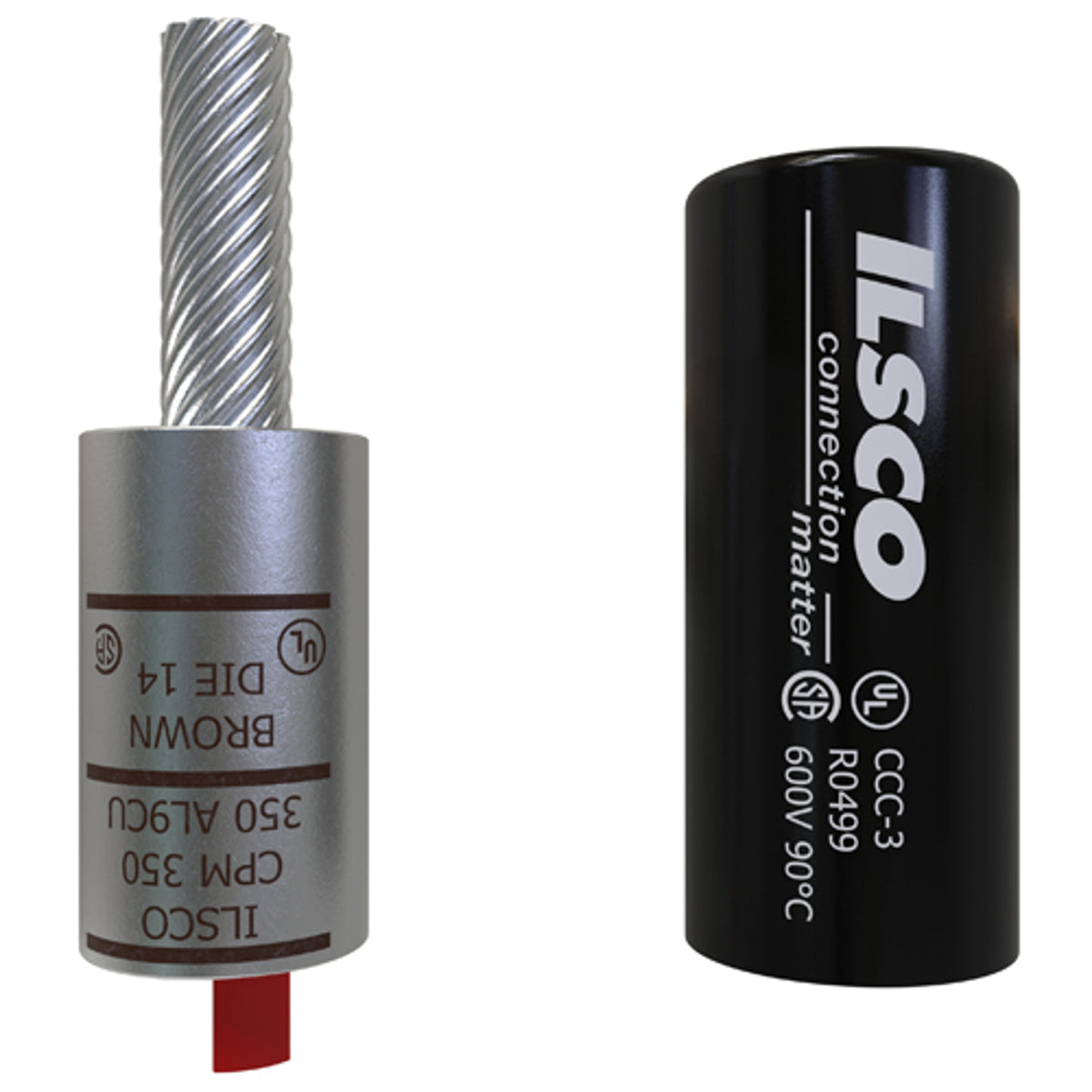

ILSCO CPM-350 Copper Compression Pigtail Adaptor, Conductor Size 350, Tin Plated, UL, CSA

Product Description

The ILSCO CPM-350 is a copper compression pigtail adaptor designed for conductor sizes of 350 KCMIL. This product is manufactured by ILSCO, a trusted name in the electrical industry.

• Made from high strength aluminum alloy for increased durability
• Compatible with both copper and aluminum connectors
• Includes insulating cover and color-coded end caps

Product Highlights

The CPM-350 offers reliable conductor connection solutions for both copper and aluminum wires. It ensures ease of use with clear markings and pre-filled de-oxidation features.

Product Information

Standard Information

• Catalog Number: CPM-350
• Manufacturer: ECM Industries

Technical Specifications

• Approval: UL 486A/B, CSA
• Conductor Material: Copper/Aluminum
• Conductor Size: 350 KCMIL
• Cover Size: 2-27/32 inches long
• Material: High strength aluminum alloy barrel, high conductivity copper pigtail
• Pin Size: 17/32 inches diameter x 1-5/8 inches long
• UPC: 783669008609
• Type: Pigtail
