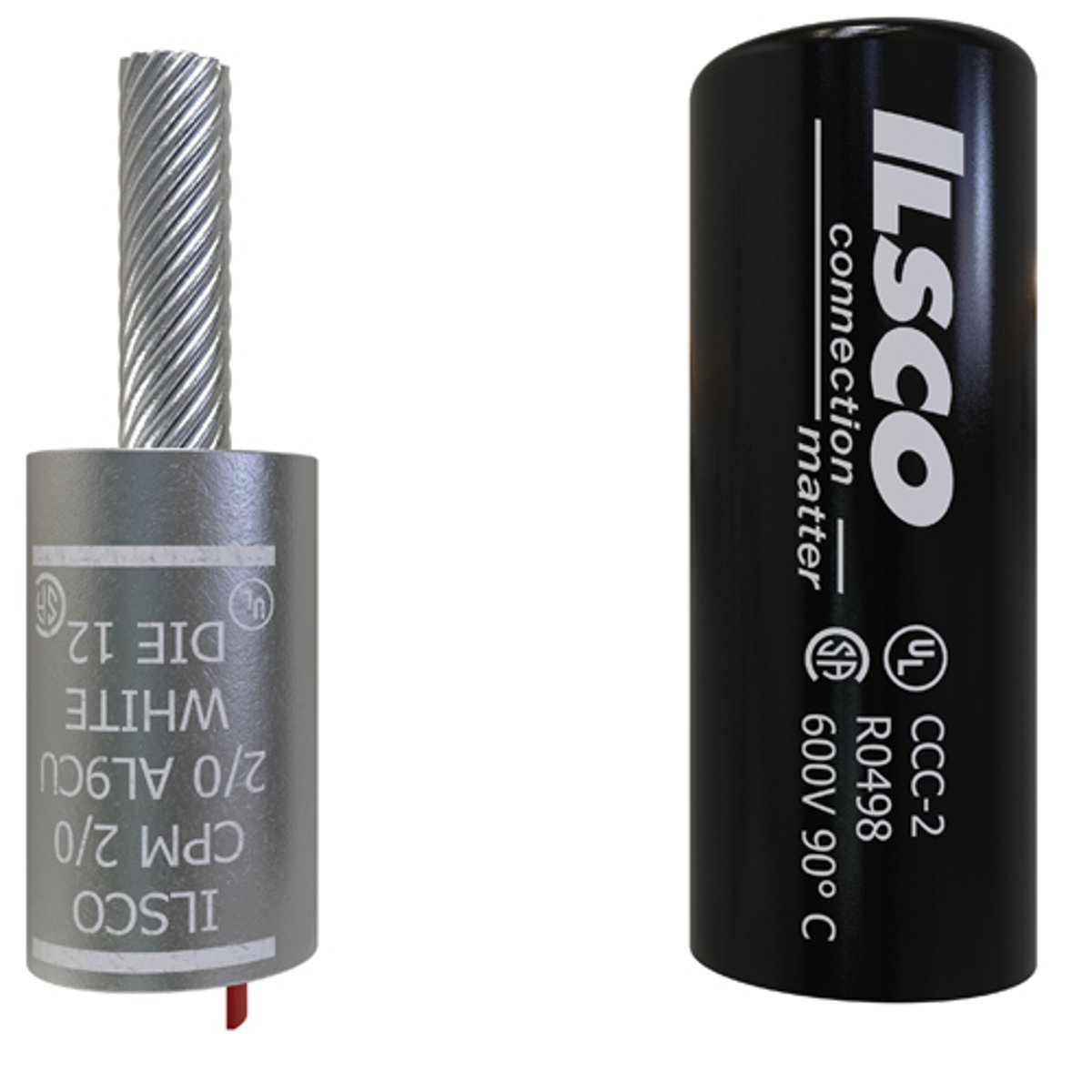

ILSCO CPM-2/0 Copper Compression Pigtail Adaptor, Conductor Size 2/0, Tin Plated, UL, CSA

Product Description

The ILSCO CPM-2/0 is a copper compression pigtail adaptor designed for conductor sizes 2/0. This adaptor is UL and CSA certified, ensuring it meets necessary electrical standards. It features a tin-plated finish for better conductivity and corrosion resistance.

• Designed for use with both copper and aluminum conductors.
• Capable of handling voltages up to 600 VAC.
• Dual rated for flexibility in electrical applications.

Product Highlights

The ILSCO CPM-2/0 incorporates high strength aluminum alloy and copper material to enhance its performance in various installations.

Product Information

Standard Information

• Manufacturer: ECM Industries
• UPC: 783669008500

Technical Specifications

• Catalog Number: CPM-2/0
• Conductor Size: 2/0 AWG
• Conductor Type: Aluminum/Copper
• Voltage Rating: 600 VAC
• Country of Origin: Mexico
• Series: CPM
• Stem Diameter: 0.332 in
• Stem Length: 1-1/4 in
• Finish: Electro-Plated Tin
• Manufacturing Standards: LR-29601 CSA Certified, RoHS Compliant, UL 486A-B, UL E62525 Listed
