Ilsco CP-500 Cu Mec 500-4/0-1/2 B Ul Csa

Product Description

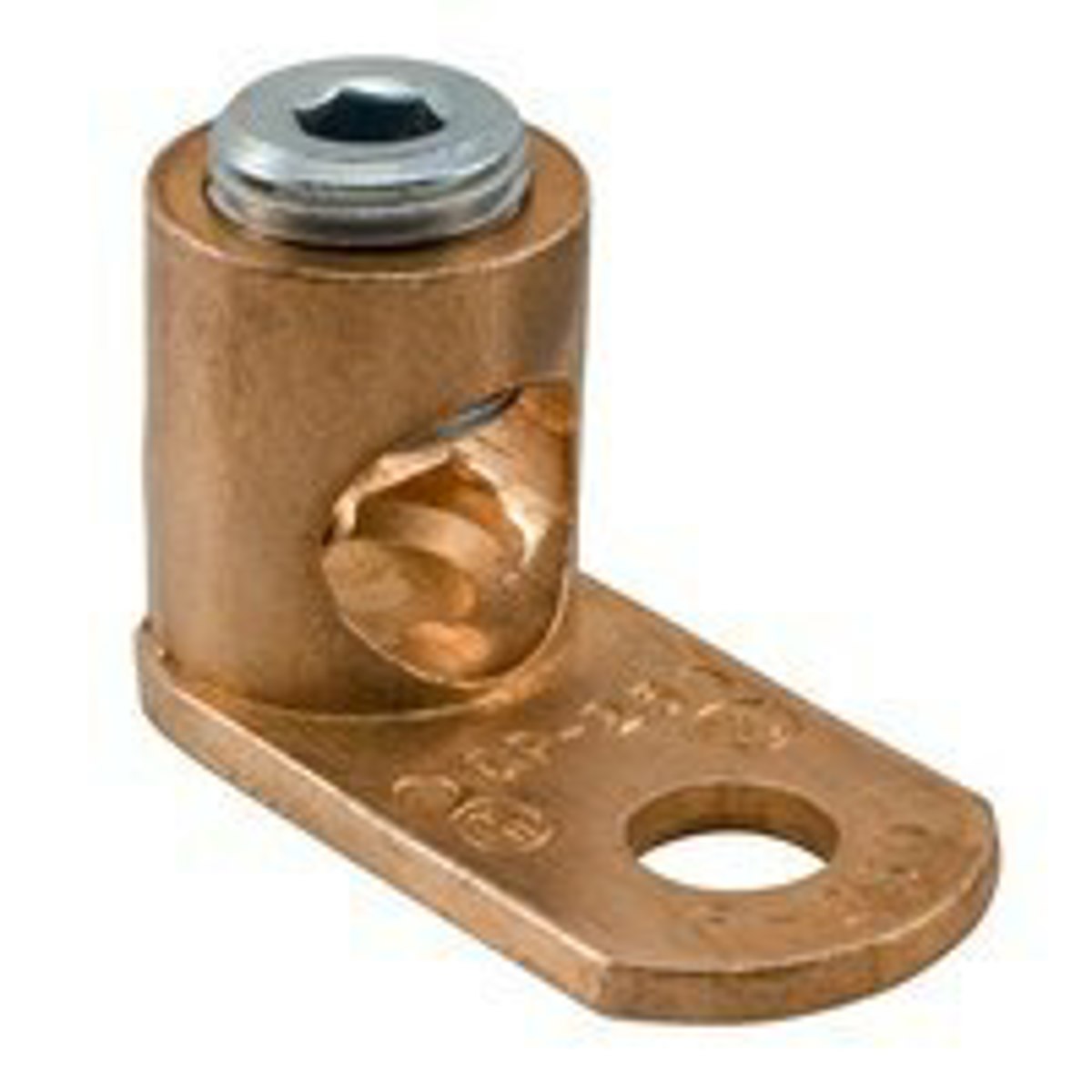

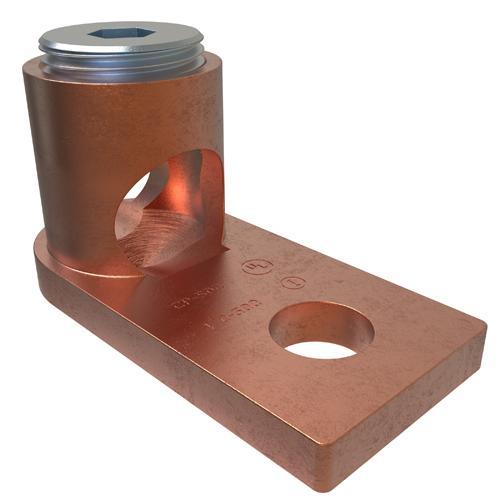

The ILSCO CP-500 is a CU MEC connector designed for copper conductors ranging from 4/0 AWG to 500 kcmil. This compact, reusable connector is manufactured from high conductivity copper alloy, ensuring long-lasting, reliable contact. It is suitable for use in circuits rated 35 kV or less when proper high voltage spacing and insulation techniques are applied.

• Re-usable
• Manufactured from high conductivity copper alloy provides long lasting reliable contact
• Compact design saves space and reduces installation time

Product Highlights

ILSCO CP-500 provides a reliable connection for copper conductors, offering space-saving design and reusability.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CP-500
• Country of Origin: United States

Technical Specifications

• Catalog Number: CP-500
• Manufacturer: ECM Industries
• Brand: ILSCO
• UPC: 783669030174
• GTIN: 00783669030174
• Conductor Size: 4/0 AWG to 500 kcmil
• Dimensions: 2.9688 in L x 1.375 in W x 1.4375 in H
• Specifications: 3/8 in Hex
• Tongue Size: 1.781 in L x 0.281 in THK
• Type: Type CP Compact
• UNSPSC: 39121408
• Material: Copper
• Mounting: 1-Hole
• Allowable Gauge Range: 4 - 500
• Stud Size: 1/2 in
