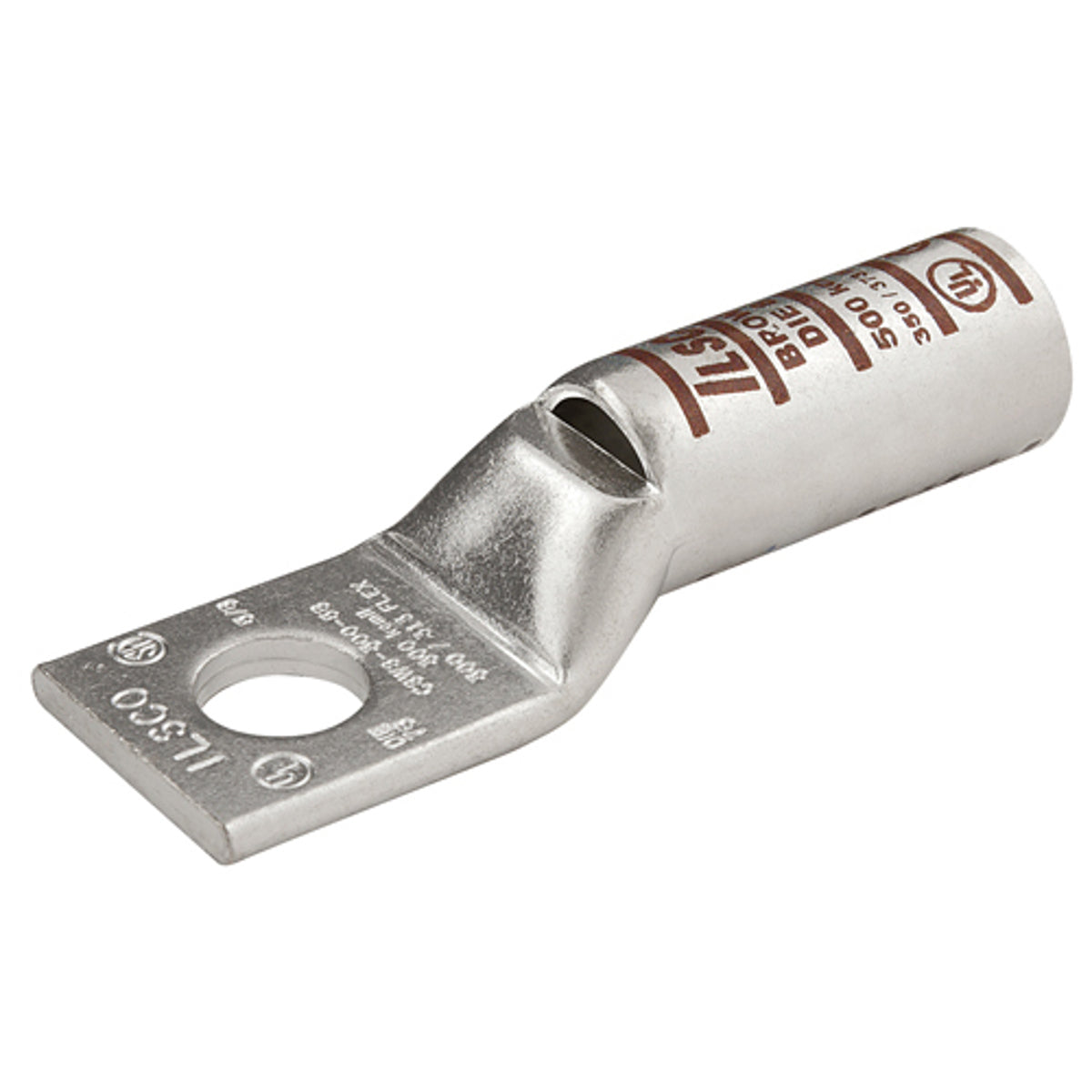

ILSCO CLWS-6-38 Surecrimp Copper Compression Lug Conductor Size 6 1 Hole 3/8in Bolt Size

Product Description

The ILSCO CLWS-6-38 is a copper compression lug designed for conductor size six with a one-hole and three-eighths inch bolt size. This product is made from seamless electro-tin plated copper, ensuring maximum conductivity. It features a long barrel for easy crimping and is UL listed and CSA certified.

• Manufactured from high strength seamless copper tubing.
• Color-coded to identify the proper compression die.
• Suitable for applications up to thirty-five kilovolts when using proper high voltage techniques.

Product Highlights

This compression lug offers excellent conductivity and crimping characteristics, making it ideal for electrical connections.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLWS-6-38
• Conductor Size: 6 AWG
• Stud Size: 3/8 Inch
• Barrel Length: 1.125 Inch
• Pad Size: 0.875 Inch L x 0.593 Inch W x 0.087 Inch Thk
• Material: Seamless Electro-Tin Plated Copper
• Color: Blue
• Approval: UL 453G, UL 467, UL 486A/B, CSA
