Ilsco CLWS-500-38 Surecrimp Copper Compression Lug 500 kcmil

Brand: ILSCO
SKU: CLWS-500-38
Availability: In Stock

Ships same day if ordered by 12 pm
$66.37
$66.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

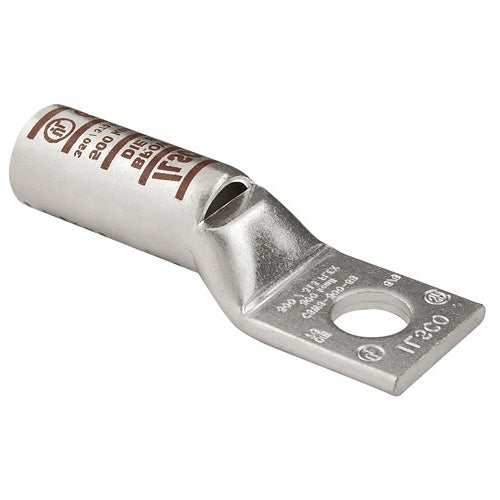

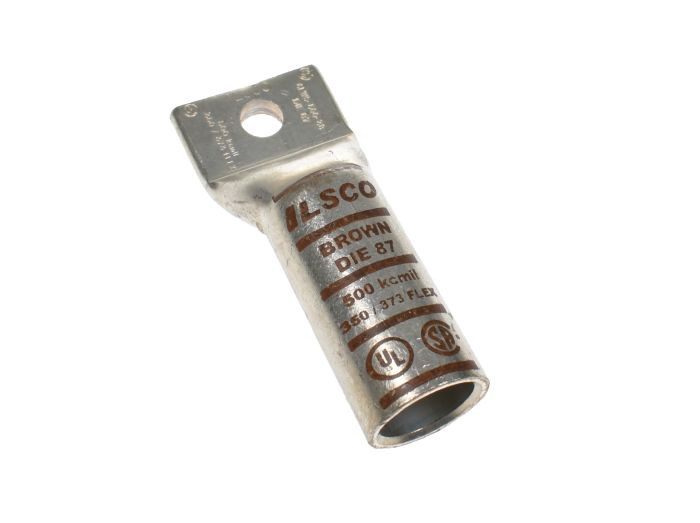

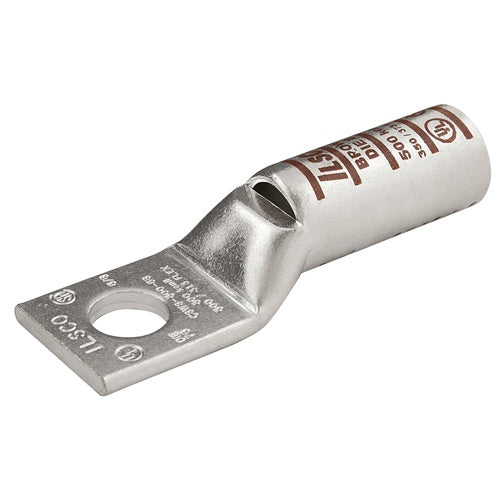

The ILSCO CLWS-500-38 Surecrimp Copper Compression Lug is designed for conductor size 500 kcmil. This lug features a long barrel, a sight window, and is tin plated for corrosion resistance. It is UL Listed and CSA Certified, ensuring compliance with safety standards for electrical connections.

  • Tin Plated for corrosion resistance
  • UL Listed and CSA Certified
  • Features a sight window and long barrel

Product Highlights

Ideal for secure electrical terminations in grounding, bonding, and power distribution applications.

Product Information

Standard Information

  • Brand: ILSCO
  • Manufacturer Part Number: CLWS-500-38
Technical Specifications
Conductor Type
Flex
Barrel Marking
Ink
Barrel Type
Long
Connecting Angle
1800
Connection
Compression
Contains DE-OX
No
Flared End
No
ILSCOs Die Catalog Number
ILD-87
ILSCOs Die Index Number
I-87
Mounting Hole Type
Thru
Narrow Tang
No
Number of Mounting Holes
1
Sight Window
Yes
Slotted
No
Tang End Shape
Square
Undrilled
No
Conductor Material
Copper
Connector Finish
Tin
Material
Copper
Mounting Bolt/Stud Size
3/8
Temperature Rating
900C
Conductor Range CU Stranded (Primary, run, main, line)
500 kcmil
Conductor Range AL Stranded (Primary, run, main, line)
NA
Conductor Range CU Solid (Primary, run, main, line)
NA
Conductor Range AL Solid (Primary, run, main, line)
NA
Expanded Conductor Range
500 kcmil - 250 kcmil
Flex Conductor Range
350 G,H,I,K,M 373.7 DLO
Color
Silver
Color Code
Brown
Voltage Rating
35 kV
CSA File Number
LR-29601
CSA Standard
C22.2 No. 65-03
NEBS Rating
Level 3
UL Control Number
453G
UL / CULUS Specification
UL 467 Listed
UL File Number
E6207
Barrel Length (IN)
2.25
Barrel Length (mm)
57.15
Dimension G (IN)
0.414
Dimension G (mm)
10.5156
Height (IN)
1.097
Height BX (IN)
2.25
Height (mm)
27.8638
Inside Diameter (IN)
0.828
Inside Diameter (mm)
21.0312
Length (IN)
3.857
Length (mm)
97.9678
Mounting Hole Diameter (IN)
0.406
Mounting Hole Diameter (mm)
10.3124
Mounting Hole Spacing (mm)
0
Outside Diameter (IN)
1.052
Outside Diameter (mm)
26.7208
Strip Length (mm)
58.7248
Tang Length (IN)
0.875
Tang Length (mm)
22.225
Tang Thickness (IN)
0.234
Tang Thickness (mm)
5.9436
Tang Width (IN)
1.535
Tang Width (mm)
38.989
Width (IN)
1.535
Width BX (IN)
5
Width (mm)
38.989
Stud Size
3/8 "
Allowable Gauge Range
500
Component
Compression Lug
Manufacturer
Ilsco
Wire Gauge
500 MCM
Product Series
CLWS
Family Series
Ilsco Terminals, CLWS Series
Description
CU CMP 500 kcmil 13/32 T UL C SA
Wire Size Range
250-500 kcmil
Number of Conductors
1
Net Weight
0.425 lbs
Gross Weight
0.425 lbs
