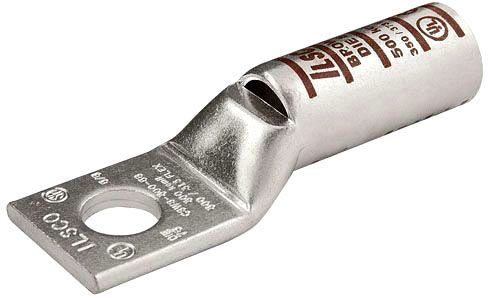

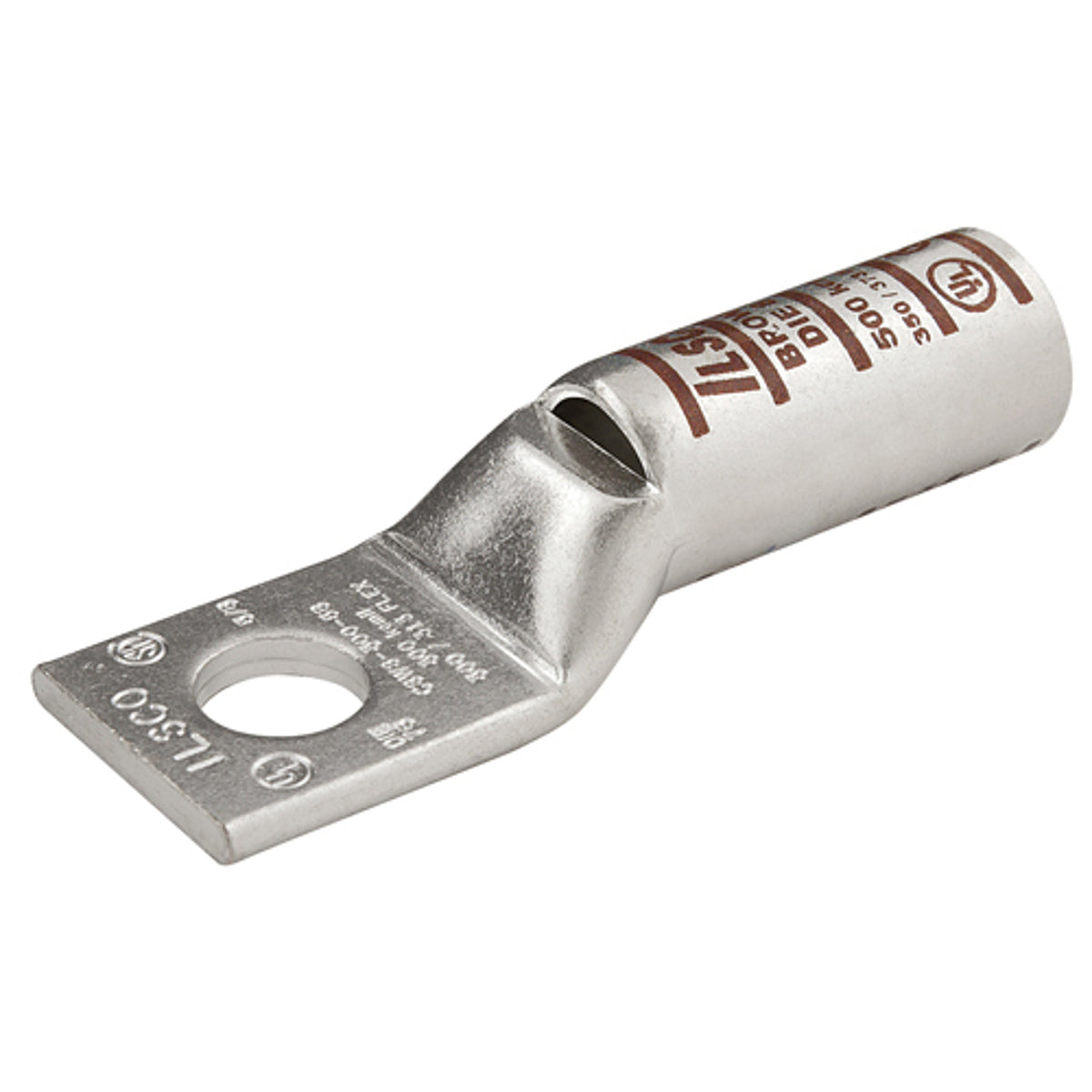

ILSCO CLWS-500-12 Surecrimp Copper Compression Lug, Conductor Size 500, 1 Hole, 1/2in Bolt Size

Product Description

The ILSCO CLWS-500-12 is a compression lug designed for high conductivity and effective crimping. This product is suitable for applications requiring a conductor size of five hundred KCMIL and utilizes a one-half inch bolt size. The long barrel design aids in secure connections and ensures reliability in various environments.

• Designed for conductor size 500 KCMIL
• Features a long barrel for enhanced connection stability
• UL listed and CSA certified for safety

Product Highlights

This compression lug provides excellent conductivity and is electro-tin plated to reduce contact resistance.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLWS-500-12
• Barrel Length: 2.25 inches
• Material: Seamless Electro-Tin Plated Copper
• Stud Size: 1/2 inch
• Country of Origin: United States
• Approvals: UL 453G, UL 467, UL 486A/B, CSA
• Number of Holes: 1
• Conductor Material: Copper
