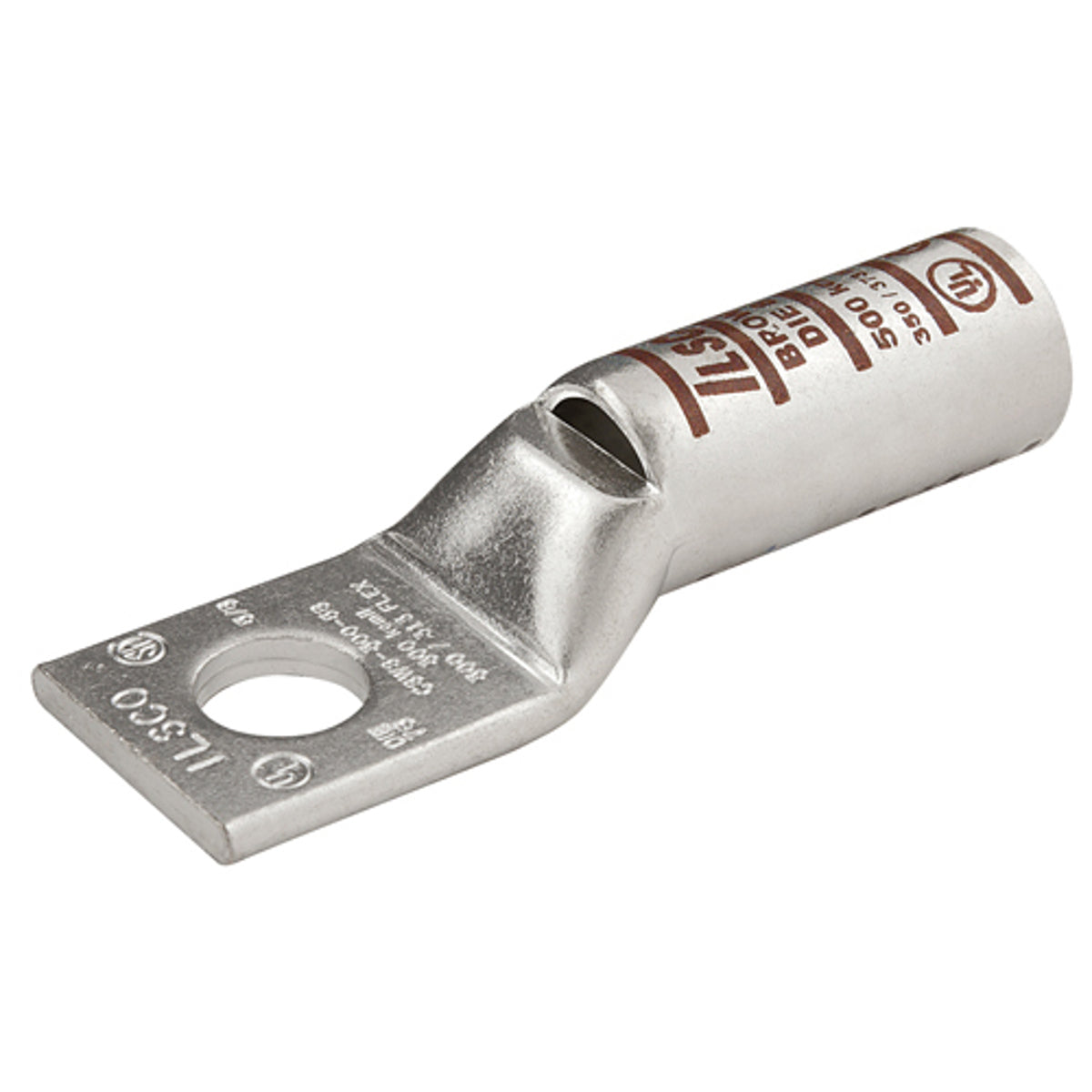

ILSCO CLWS-4/0-38 Surecrimp Copper Compression Lug Conductor Size 4/0 1 Hole 3/8in Bolt Size

Product Description

The ILSCO CLWS-4/0-38 is a copper compression lug designed for conductor size 4/0. It features a single hole for a 3/8 inch bolt size. This long barrel design includes a sight window for easier inspection and proper crimping.

• Manufactured from high strength seamless copper tubing for maximum conductivity.
• UL Listed and CSA certified for reliable performance.
• Color coded for easy identification of the proper compression die.

Product Highlights

This lug is ideal for high conductivity applications, making it suitable for various electrical connections. It can be used in installations that require high voltage connections when proper spacing and insulation techniques are observed.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: United States

Technical Specifications

• Catalog Number: CLWS-4/0-38
• Conductor Size: 4/0 AWG
• Stud Size: 3/8 Inch
• Barrel Length: 1.5 Inch
• Material: Seamless Electro-Tin Plated Copper
• Die Index: I-54
• Approval Standards: UL 453G, UL 467, UL 486A/B, CSA
• Pad Size: 0.875 Inch L x 0.999 Inch W x 0.141 Inch Thk
• Overall Length: 2.87 Inch
