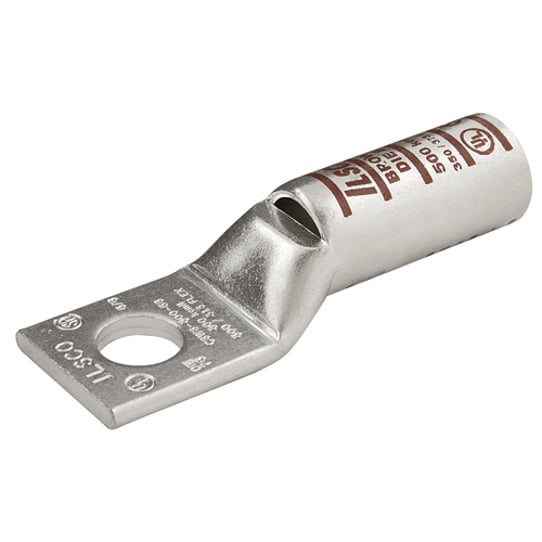

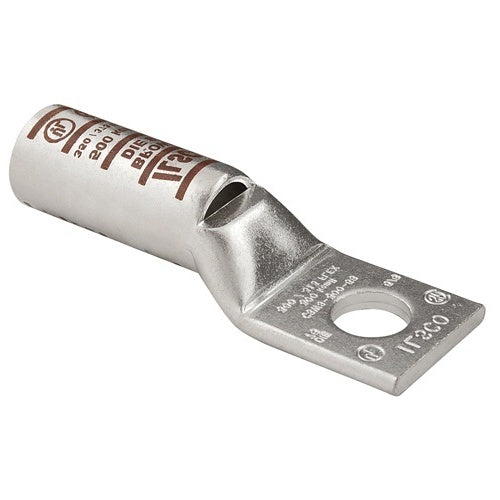

Ilsco CLWS-300-38 Compression Lug, Copper, 1-Hole

Product Description

The ILSCO CLWS-300-38 is a Surecrimp copper compression lug designed for 300 kcmil conductors. It features a 1-hole mount and a 3/8in bolt size, with a long barrel and sight window. Electro-tin plated for corrosion resistance, it's suitable for circuits rated 35KV or less with proper high voltage spacing and insulation techniques.

• Electro-tin plated for corrosion resistance
• Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
• UL Listed and CSA Certified with ILSCO and major competitor's tools for application versatility

Product Highlights

This copper compression lug is UL Listed and CSA Certified, ensuring versatility and reliability in various applications.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLWS-300-38
• Country of Origin: USA

Technical Specifications

• Material: Copper
• Mounting: 1-Hole
• Stud Size: 3/8 in
• Allowable Gauge Range: 300
• Bolt Size: 3/8"
• Component: Compression Lug
• Connector Finish: Tin
• Wire Gauge: 300 MCM
• Conductor Type: Flex
• Number of Mounting Holes: 1
• Brand: ILSCO
• Height: 0.81 in
• Width: 1.19 in
• Length: 3.46 in
• Catalog Number: CLWS-300-38
• Manufacturer: ECM Industries
• Country of Origin: United States
• Made in USA: Yes
• UPC: 783669641837
• GTIN: 00783669641837
• Temperature Rating: 90 degrees C
• Voltage: 35,000 Volt
• Type: CLWS:1 HOLE LONG W/SIGHT
• Applications: Copper Compression Lug
