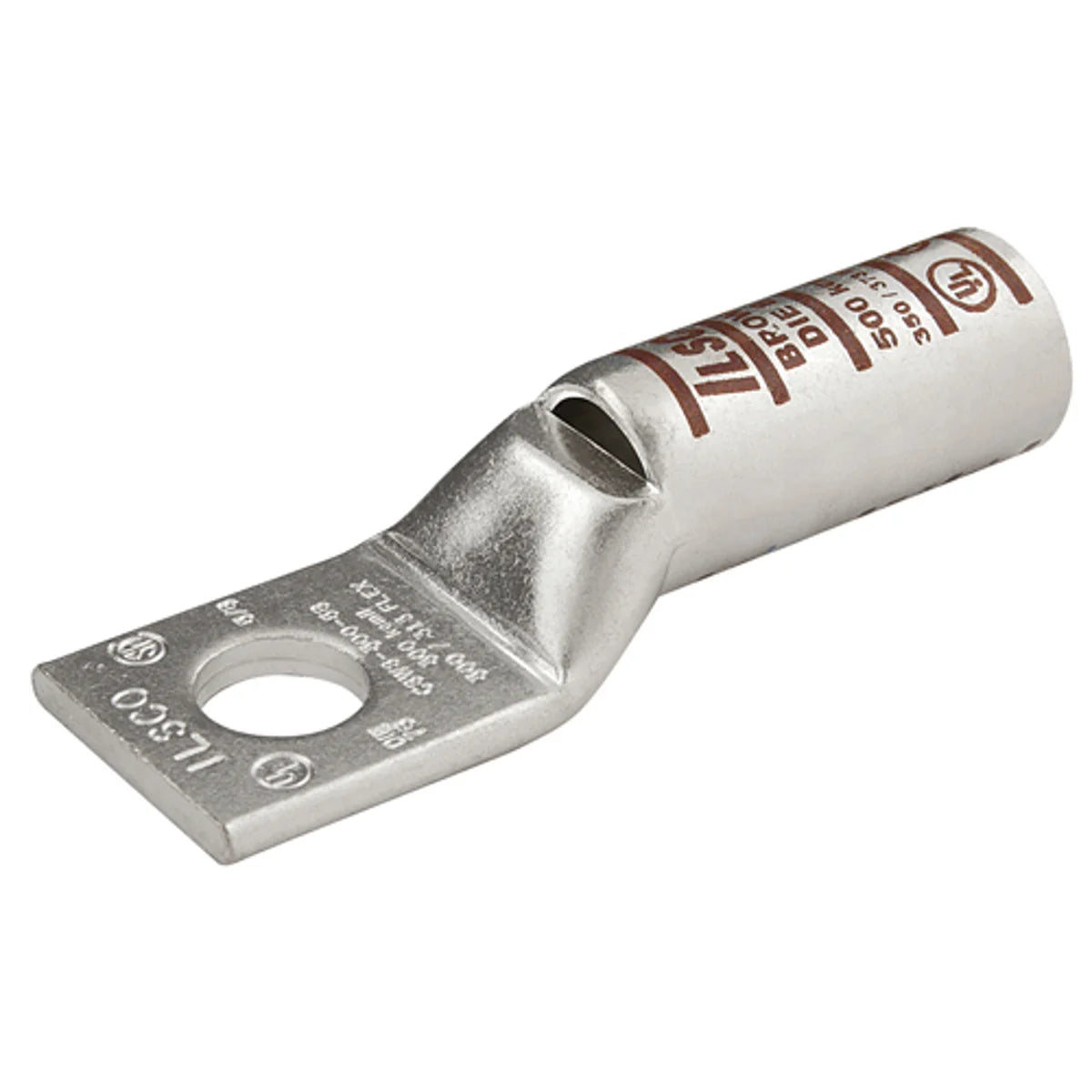

ILSCO CLWS-2/0-38 Surecrimp Copper Compression Lug, 3/8in Stud Size, Long Barrel

Product Description

The ILSCO CLWS-2/0-38 is a copper compression lug designed for conductors sized two zero AWG. It features a one hole design with a three eighths inch stud size, making it suitable for various electrical applications. This compression lug offers high conductivity and reliable connections for electrical circuits.

• Made from seamless copper tubing for maximum conductivity
• Chamfered entry for easy conductor insertion
• UL listed and CSA certified for safety and quality

Product Highlights

This compression lug is designed for use in high voltage applications, rated up to thirty five kilovolts when proper techniques are used. Its long barrel length allows for excellent crimping characteristics and ensures a secure connection. The lug is electro-tin plated to provide low contact resistance.

Product Information

Standard Information

• Manufacturer: ILSCO
• Country of Origin: United States

Technical Specifications

• Catalog Number: CLWS-2/0-38
• Conductor Size: 2/0 AWG
• Stud Size: 3/8 Inch
• Barrel Length: 1.5 Inches
• Material: Seamless Electro-Tin Plated Copper
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Die Index: I-45
• Voltage Rating: 600 VAC
