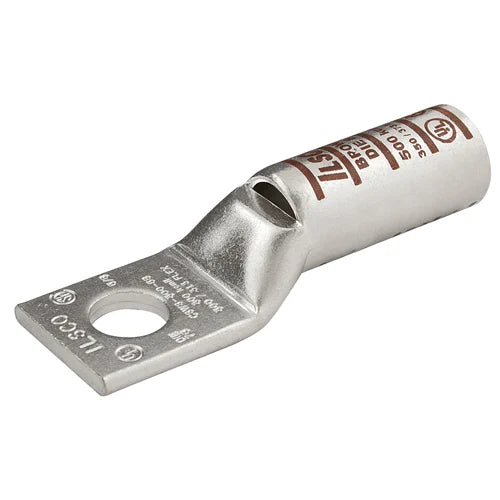

ILSCO CLWS-1/0-38 Surecrimp Copper Compression Lug 1/0 AWG 3/8 in Bolt Hole

Product Description

The ILSCO CLWS-1/0-38 is a copper compression lug designed for connecting conductors. It is suitable for a conductor size of 1/0 AWG and features a one hole configuration with a three-eighths inch bolt size. This long barrel lug includes a sight window, ensuring proper crimping alignment and application.

• Designed for 1/0 AWG conductors
• Features a three-eighths inch bolt hole
• Constructed from seamless electro-tin plated copper for low contact resistance

Product Highlights

This copper compression lug is ideal for electrical connections in residential and commercial applications. It meets industry standards and is UL listed.

Product Information

Standard Information

• Manufacturer: ECM Industries
• Country of Origin: United States

Technical Specifications

• Catalog Number: CLWS-1/0-38
• Conductor Material: Copper
• Barrel Length: One and a half inches
• Stud Size: Three-eighths inch
• Die Index: I-42
• Voltage Rating: 600 VAC
• Temperature Rating: Ninety degrees Celsius
• Certifications: UL 453G, CSA
