Product Description

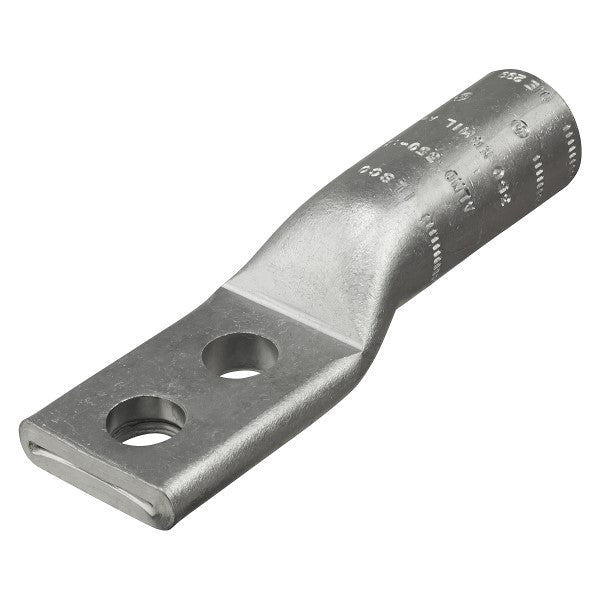

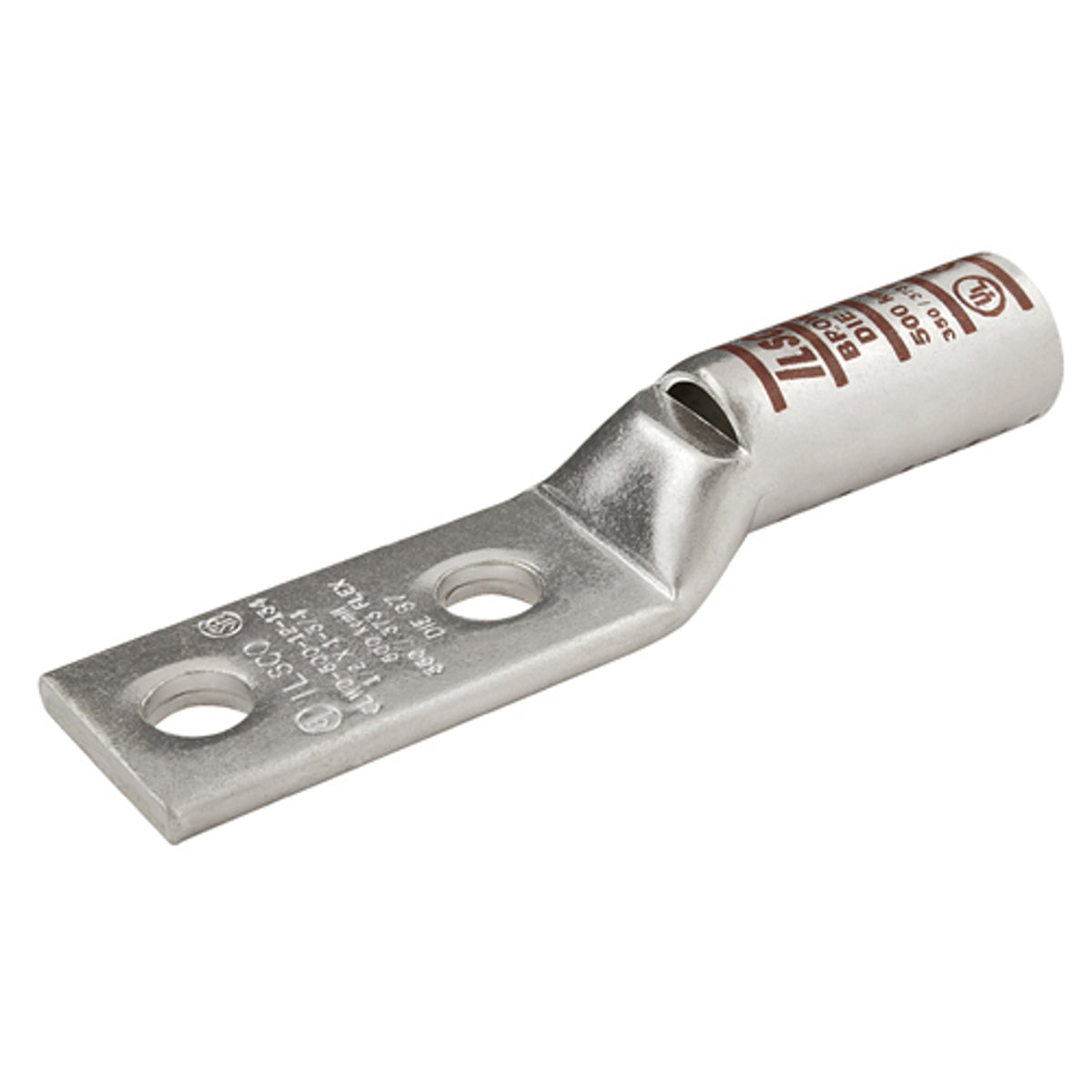

The ILSCO Compression Lug, model CLWD-700-12-134, is designed for connecting copper conductors with a size ranging from three hundred fifty to seven hundred kcmil. This lug features two holes for secure fastening with a half inch bolt size and has a hole spacing of one and three-quarter inches. The tin plating ensures durability and resistance to corrosion.
- Designed for copper conductors up to seven hundred kcmil
- Compatible with various installation tools
- Made in the USA for reliable performance
Product Highlights
This compression lug offers excellent conductivity and maximum crimping characteristics for effective electrical connections.
Product Information
Standard Information
-
Catalog Number: CLWD-700-12-134
-
Manufacturer: ECM Industries
Technical Specifications
-
Material: Copper
-
Overall Length: 6.556 inches
-
Barrel Size: 2.687 inches
-
Conductor Type: Flex Copper
-
Voltage Rating: 600 VAC
-
Temperature Rating: 90 degrees Celsius
-
Die Code: 99
-
Mounting Hole Size: 0.562 inches Diameter
