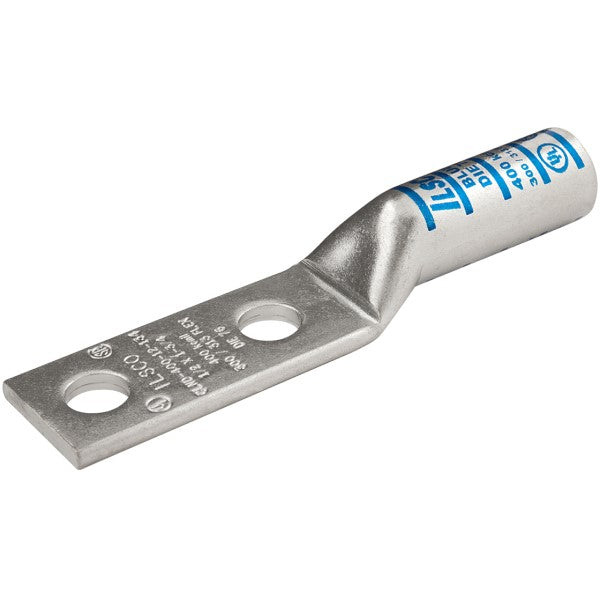

ILSCO CLWD-650-12-134 SureCrimp 2-Hole Compression Lug 650 kcmil 1/2 in Stud I-99

Product Description

The ILSCO SureCrimp CLWD-650-12-134 is a 2-Hole Compression Lug designed for high-performance electrical applications. Constructed from high-strength seamless copper tubing, this lug features a sight hole for easy conductor insertion. It is electro-tin plated to enhance conductivity while providing excellent crimping characteristics.

• Manufactured for circuits rated up to 35 kilovolts.
• Two mounting holes with a spacing of one and three-quarters inches.
• Compatible with conductors sized from 350 kcmil to 650 kcmil.

Product Highlights

This compression lug is suitable for various applications, including residential, commercial, and industrial settings. Its design minimizes contact resistance and simplifies the crimping process, making it a reliable choice for electricians.

Product Information

Standard Information

• Brand: ILSCO
• UPC: 783669648119

Technical Specifications

• Type: 2-Hole
• Color: Pink
• Material: Copper
• Conductor Size: 650 kcmil
• Voltage Rating: 600 VAC
• Temperature Rating: 90 deg C
• Overall Length: 6.556 in
• Barrel Size: 2.687 in L
• Stud Size: 1/2 in
• Die Code: I-99
• Manufacturing Standards: UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant
