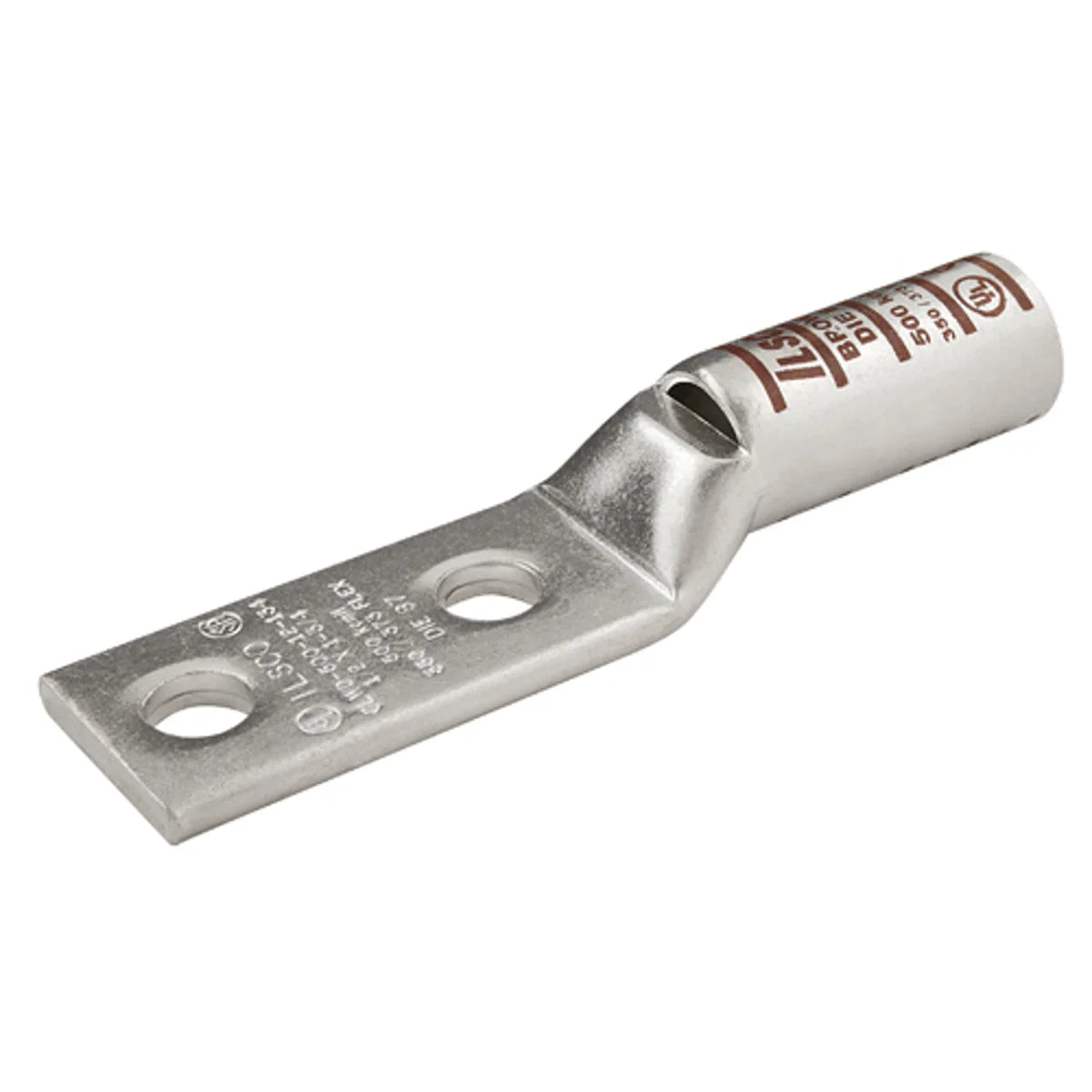

ILSCO CLWD-500-12-134 Surecrimp Copper Compression Lug, Conductor Size 500, 2 Holes, 1/2 in Bolt Size, 1-3/4 in Hole Spacing

Product Description

The ILSCO CLWD-500-12-134 is a copper compression lug suitable for conductors sized 500 kcmil. This lug features two mounting holes with a spacing of one and three-quarter inches and a bolt size of one-half inch. It is designed for electrical connections in high voltage applications.

• Manufactured from seamless high strength copper tubing.
• Electro tin plated for enhanced durability.
• Provides low contact resistance for reliable performance.

Product Highlights

This compression lug is ideal for applications rated up to 35kV. It supports ease of installation and ensures effective conductivity. The long barrel and sight window improve the connection process.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer: ECM Industries

Technical Specifications

• Catalog Number: CLWD-500-12-134
• Conductor Size: 500 kcmil
• Stud Size: 1/2 in
• Voltage Rating: 600 VAC
• Country of Origin: United States
• Temperature Rating: 90 deg C
• Barrel Size: 2-1/4 in L
• Overall Length: 5.982 in
