Product Description

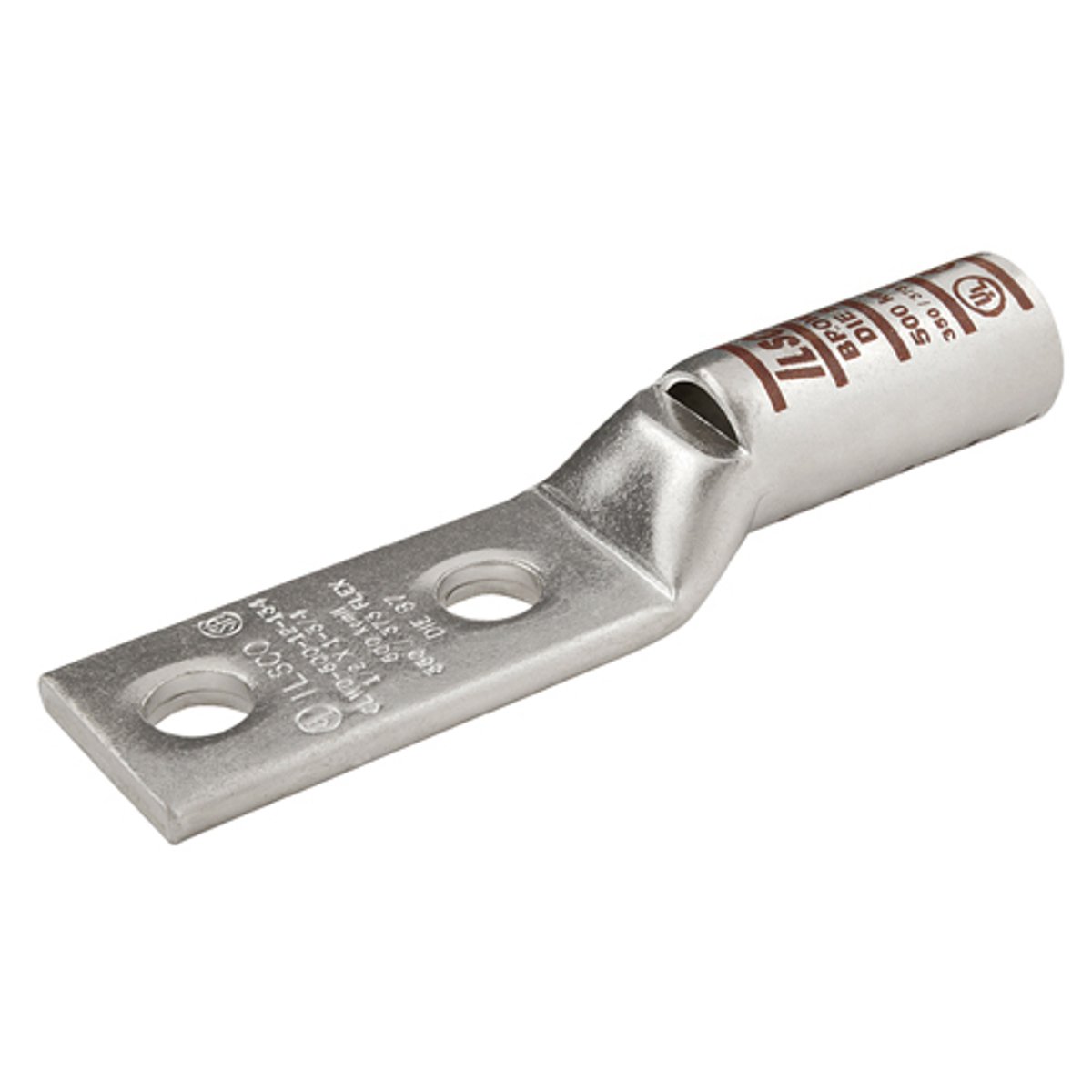

The ILSCO CLWD-350-12-134 is a copper compression lug designed for use with conductors sized 350 kcmil. This compression lug features two mounting holes with a bolt size of one half inch and hole spacing of one and three-fourths inches, making it suitable for various electrical connections.
- Manufactured from high strength seamless copper tubing.
- Electro tin plated for corrosion resistance.
- UL and CSA approved for high voltage applications.
Product Highlights
This product offers maximum conductivity and excellent crimping characteristics. It is designed to reduce inventory requirements while providing an application versatility for various wiring needs.
Product Information
Standard Information
-
Manufacturer: ECM Industries
-
Country of Origin: United States
Technical Specifications
-
Catalog Number: CLWD-350-12-134
-
Barrel Size: 2 inches long
-
Conductor Size: 350 kcmil
-
Stud Size: 1/2 inch
-
Voltage Rating: 600 VAC
-
Temperature Rating: 90 degrees Celsius
-
Material: Copper
-
Compliance Standards: UL 453G Listed, CSA LR-29601 Certified
