Product Description

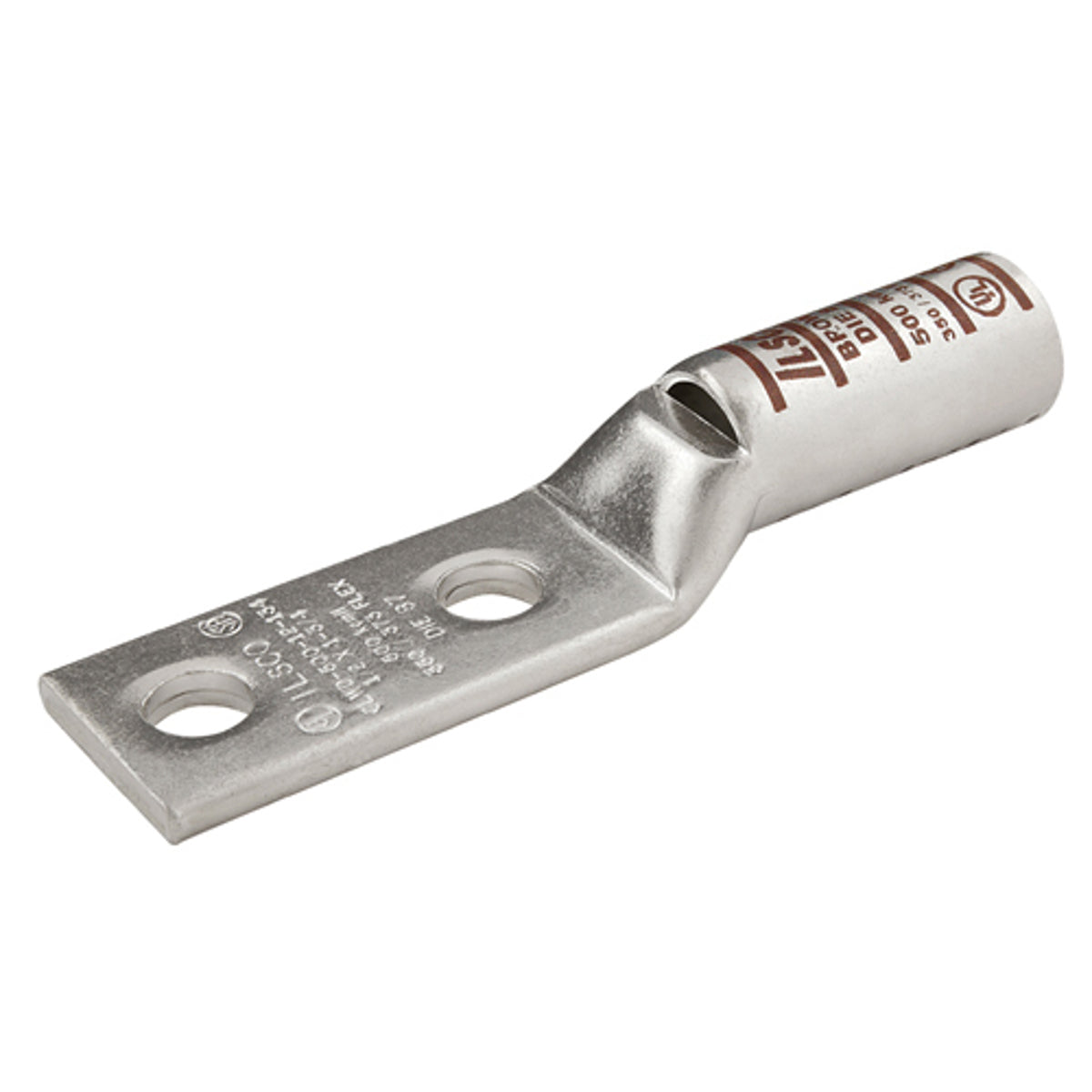

The ILSCO CLWD-250-12-134 is a copper compression lug designed for conductor sizes of two hundred fifty KCMIL. It features two holes for mounting and comes with a half-inch stud size. This compression lug is suitable for various applications in electrical systems, ensuring reliable connectivity and longevity.
- Manufactured from high strength seamless copper tubing
- Chamfered entry for easy conductor insertion
- Electro-tin plated to provide low contact resistance
Product Highlights
The ILSCO CLWD-250-12-134 compression lug combines durability with effective conductivity. It is ideal for both high voltage applications and standard electrical installations.
Product Information
Standard Information
-
Brand: ILSCO
-
Manufacturer: ECM Industries
Technical Specifications
-
Catalog Number: CLWD-250-12-134
-
Conductor Material: Copper
-
Conductor Size: 250 KCMIL
-
Stud Size: 1/2 Inch
-
Barrel Length: 1.688 Inch
-
Pad Hole Spacing: 1-3/4 Inch
-
Overall Length: 5.219 Inch
-
Voltage Rating: 600 VAC
