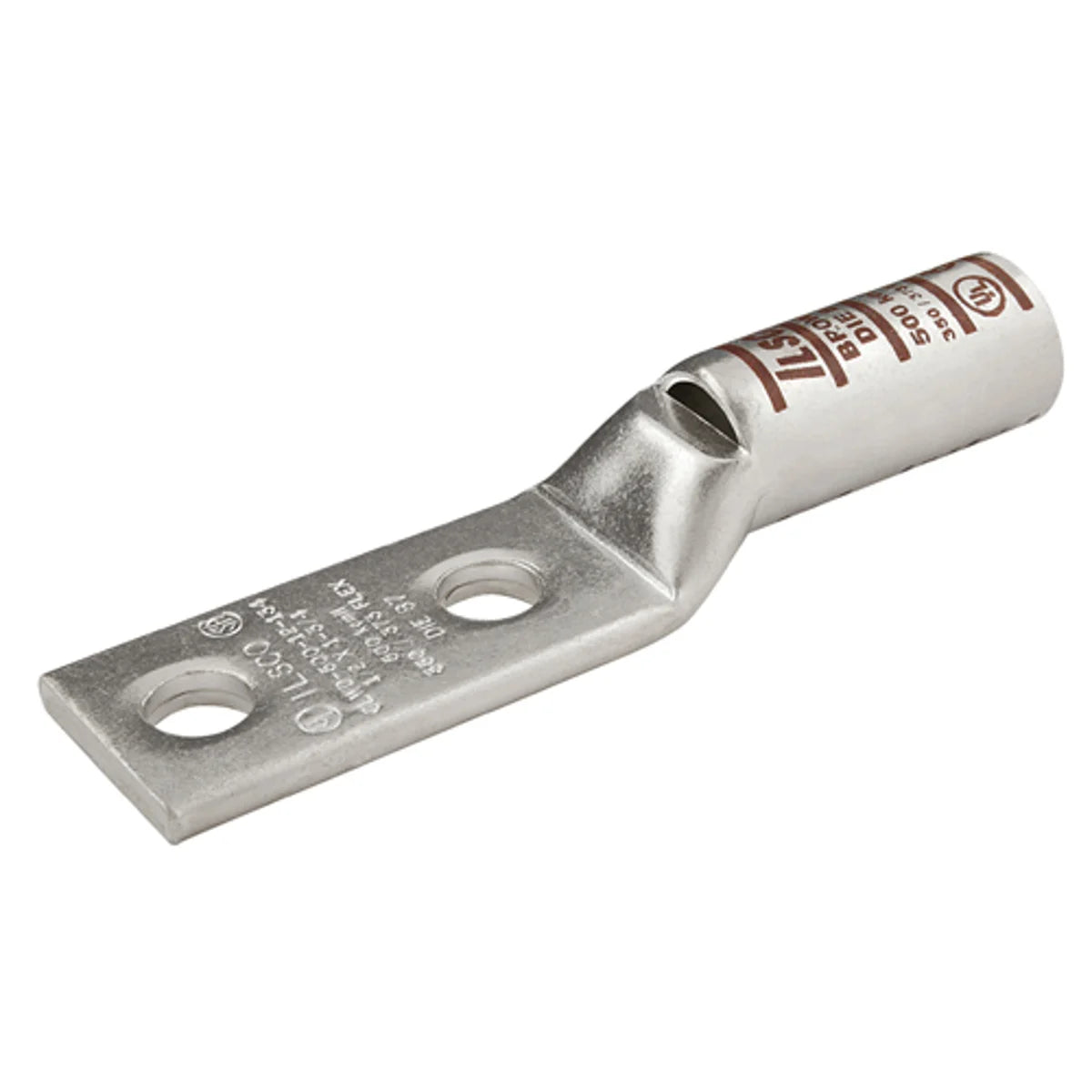

ILSCO CLWD-1-38-1 Surecrimp Copper Compression Lug 1 AWG 2 Holes 3/8in Bolt Size

Product Description

The ILSCO CLWD-1-38-1 is a copper compression lug designed for use with 1 AWG conductors. This product features two holes for easy installation and a bolt size of 3/8 inches. It is manufactured from high-strength seamless copper tubing, ensuring maximum conductivity and excellent performance.

• Manufactured from seamless copper tubing
• Appropriate for circuits rated 35 kV or less
• UL and CSA certified for safety

Product Highlights

This copper compression lug is ideal for electrical connections in various applications. Its long barrel design allows for a secure connection, enhancing conductivity and durability.

Product Information

Standard Information

• Catalog Number: CLWD-1-38-1
• Manufacturer: ECM Industries

Technical Specifications

• Country of Origin: United States
• UPC: 783669635195
• Conductor Material: Copper
• Barrel Type: Long
• Stud Size: 3/8 inches
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Temperature Rating: 90 degrees Celsius
• Overall Length: 3.642 inches
