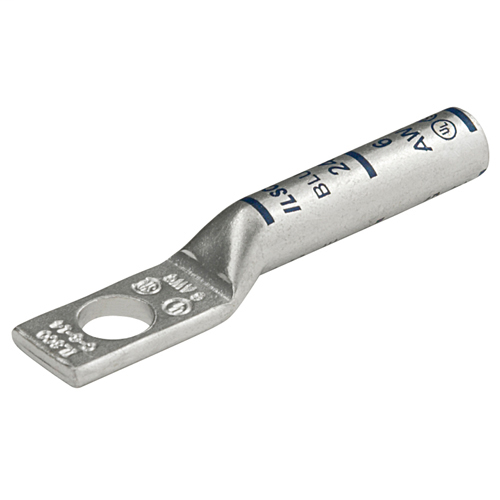

Ilsco CLNS-8-14 SureCrimp Copper Compression Lug 1/4in

Product Description

The ILSCO CLNS-8-14 SureCrimp Compression Lug is a 1-hole lug designed for 8 AWG conductors. Constructed from high-strength seamless copper tubing and electro-tin plated, it ensures corrosion resistance. Suitable for circuits rated 35KV or less with proper high voltage spacing. UL Listed and CSA Certified with ILSCO and major competitor's compression tools.

• SureCrimp® Compression Lug
• 1-Hole
• Electro-tin plated for corrosion resistance

Product Highlights

Copper compression lug with electro-tin plating and wide certification for versatile use.

Product Information

Standard Information

• Brand: ILSCO
• Manufacturer Part Number: CLNS-8-14
• Country of Origin: USA

Technical Specifications

• Series: CLNS
• Conductor Size: 8 AWG
• Die Code: I-21
• Voltage: 600 VAC
• Stud Size: 1/4 in
• Tongue Size: 0.68 in L x 0.486 in W
• Overall Length: 1.687 in
• Barrel Length: 0.812 in L
• Temperature Rating: 90 deg C
• Material: Copper
• ID: 0.179 in
• Applications: Copper Compression Lug
• Type: CLNS:1 HOLE LONG BARREL
• Volts AC: 600
• Standards: California Proposition 65
• Mounting: 1-Hole
• Allowable Gauge Range: 8
