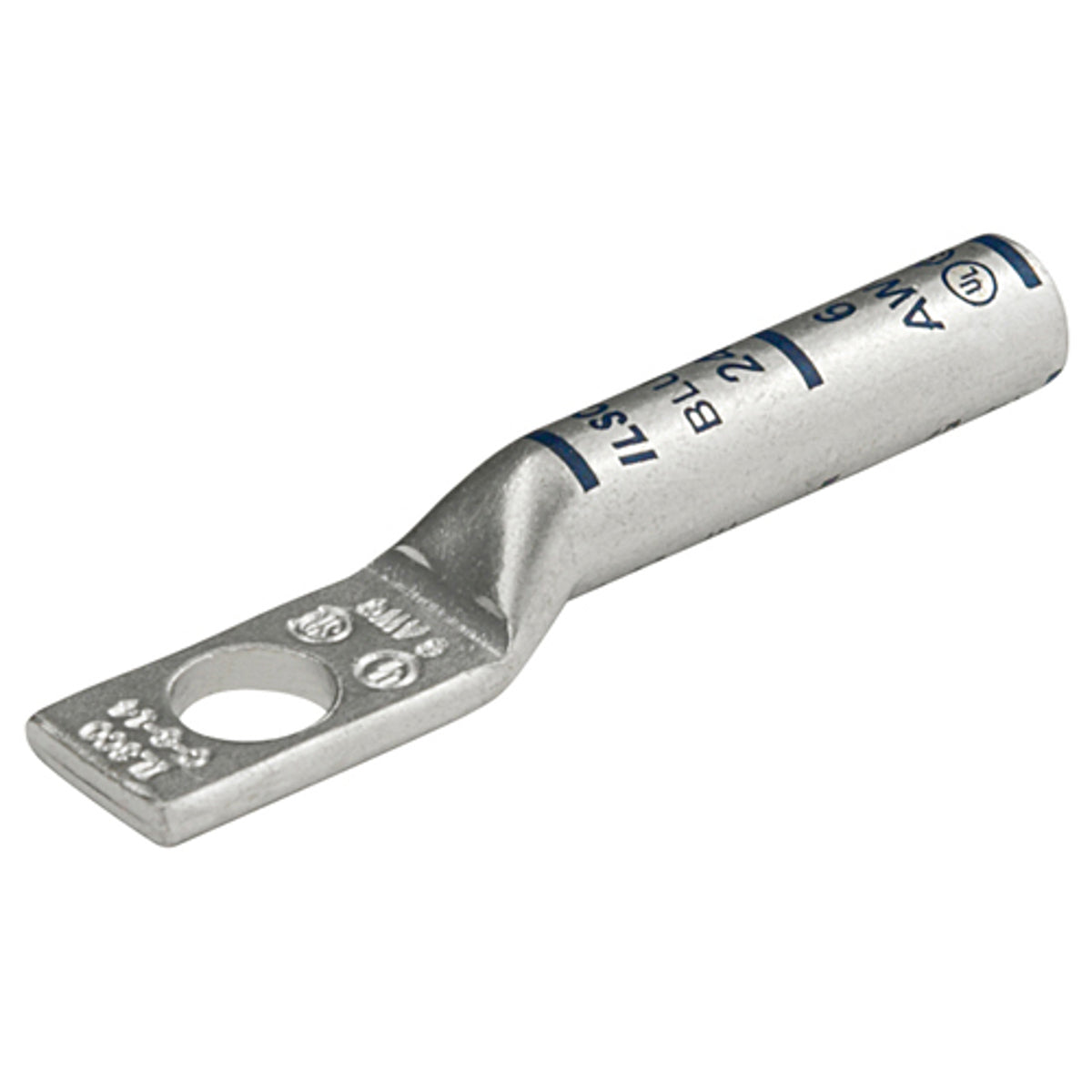

ILSCO CLNS-6-38 Surecrimp Copper Compression Lug, Conductor Size 6, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Product Description

The ILSCO CLNS-6-38 is a compression lug designed for efficient electrical connections. It accommodates a conductor size of six AWG and slots for a 3/8-inch bolt. This product is made from seamless copper tubing, ensuring maximum conductivity and reliable crimping characteristics.

• UL and CSA certified for safety and reliability.
• Features a long barrel design, making it easy to insert conductors.
• Chamfered entry allows for smooth insertion of conductors, reducing installation time.

Product Highlights

This copper compression lug is ideal for various applications including electrical service connections and machinery wiring. It is especially useful for setups requiring high conductivity and low contact resistance.

Product Information

Standard Information

• Catalog Number: CLNS-6-38
• Manufacturer: ECM Industries

Technical Specifications

• Material: Seamless Electro-Tin Plated Copper
• Barrel Length: 1.125 Inches
• Conductor Size: 6 AWG
• Stud Size: 3/8 Inch
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Country of Origin: United States
• UPC: 783669629026
• Cross Reference Products: ABBInstall 54905BE06PH, Burndy YA6CT4, Greaves L638
